Owon Sds1052 50mhz 2 Kanal Osiloskop Digital Storage Oscilloscope 50 Mhz, 2-channel, 500 Ms/s

OWON SDS1052 50Mhz 2 Kanal Osiloskop

OWON SDS1052 Digital Storage Oscilloscope 50 MHz, 2-Channel, 500 MS/S

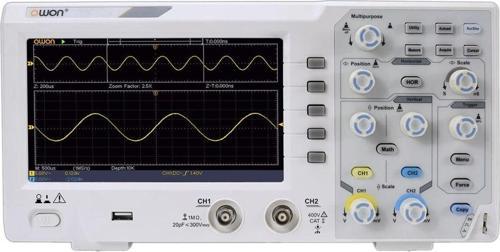

OWON SDS1052 Digital Storage Oscilloscope The Owon SDS1052 Digital Storage Oscilloscope features 2 channels, up to 500MS/s real-time sample rates, maximum 50MHz bandwidth. The SDS1052 offers a 7-inch color LCD screen with 800x600 resolution. The SDS1052 has a ultra-thin body at only 70mm deep for portability, and it offers a 10K record length per channel of memory. Super Economical Type Digital OscilloscopeUltra-thin body 7 inch high resolution LCD SCPI, and LabVIEW supported

• Digital Oscilloscope
• Ultra-thin body
• 7 inch high resolution LCD
• SCPI, and LabVIEW supported
• Bandwidth : 50MHz
• Sample Rate : 500MS/s
• Channel : 2
• Display : 7" color LCD, 800 x 480 pixels
• Input Impedance : 1MOhm +/- 2%, in parallel with 20pF+/-5pF
• Channel Isolation : 50Hz : 100 : 1, 10MHz : 40 : 1
• Max Input Voltage : 400V (PK - PK) (DC+AC, PK - PK)
• DC Gain Accuracy : +/-3%
• Record Length : 10K
• DC Accuracy (average) : Average>=16?+/-(3% reading + 0.05 div) for V
• Probe Attenuation Factor : 1X, 10X, 100X, 1000X
• LF Respond (AC, -3dB) : >=10Hz (at input, AC coupling, -3dB)
• Sample Rate / Relay Time Accuracy : +/-100ppm
• Interpolation : sin (x) / x
• Interval (T) Accuracy (full bandwidth) : Single : +/-(1 interval time + 100ppm x
• reading + 0.6ns), Average>16 : +/-(1 interval time + 100ppm x reading + 0.4ns)
• Input Coupling : DC, AC , and GND
• Vertical Resolution (A/D) : 8 bits (2 channels simultaneously)
• Vertical Sensitivity : 5mV/div - 5V/div (at input)
• Trigger Type : Edge, Video
• Trigger Mode : Auto, Normal, and Single
• Trigger Level : +/-5 divisions from screen center Line / Field Frequency (video) : NTSC, PAL and SECAM standard Cursor Measurement : V, and T between cursors Waveform Math : +, -, x, ÷, invert, FFT Waveform Storage : 16 waveforms Communication Interface : USB host, USB device Frequency Counter : available Power Supply : 100V - 240V AC, 50/60Hz, CAT II Power Consumption :

Model
SDS1052
Bandwidth
50MHz
Sample Rate
100MS/s
Horizontal Scale (s/div)
5ns/div - 1000s/div, step by 1 - 2 - 5
Channel
2
Display
7" color LCD, 800 x 480 pixels
Input Coupling
DC, AC , and GND
Vertical Resolution (A/D)
8 bits (2 channels simultaneously)
Vertical Sensitivity
5mV/div - 5V/div (at input)
Trigger Type
Edge, Video
Trigger Mode
Auto, Normal, and Single
Waveform Math
+, -, x, ÷, invert, FFT
Fuse
2A, T class, 250V
Dimension (W x H x D)
301 x 152 x 70 mm
Device Weight
1.10 kg

Paket İçeriği:

• 1 Adet OWON SDS1052
• 2 Adet Osiloskop Prob
• 1 Adet Güç Kablosu
• 1 Adet Data Cd
• 1 Adet Usb Kablo
• 1 Adet İngilizce Manual
