Alkatronik 5s 15a Bms Lityum Li-ion Batarya Koruma Kartı 5x 18650 Pil Lipo

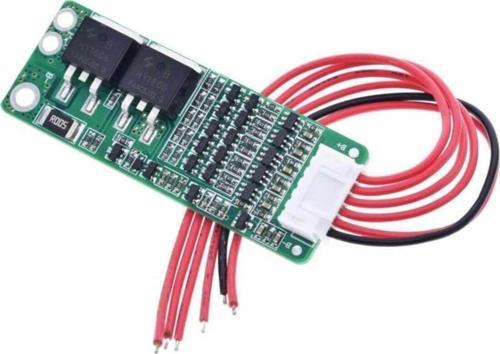

5S 15A Lityum Batarya BMS Koruma Kartı

5 Adet seri 18650 pil için uygundur. Pil şarj etmez. Pil koruması içindir.

Özellikler:

• 5 Adet seri lityum pil için koruma devresi.
• Aşırı şarj koruması.
• Aşırı deşarj koruması.
• Kısa devre koruması.
• Aşırı akım akma koruması.
• 21V luk lityum pil paketleri için uygundur.
• Kaliteli ve dayanıklı kart tasarımı.
• Ölçüler: 60mm x 23mm

Specifications:

• Charging voltage: 21 V
• Charge MOS pressure value: 35 V
• Discharge MOS pressure value: 35 V
• Charging current: 56 A
• Continuous discharge current: 15 A
• Over current protection: 50/55/60 A
• Over current protection delay: 20/25/30mS
• Single section since the power consumption: 30uA
• Single section between the power consumption: 3uA
• Single section over charge detection voltage: /
• Over charge recovery voltage V
• Over charge detection delay:
• Single section over discharge detection voltage: V
• Over discharge recovery voltage: V
• Over discharge detection delay:
• Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery
• Short circuit protection delay 200/500/600uS
• The normal working state of B- to P- resistance: 5m?
• Continuous 15A current maximum temperature rise: 25 °
• Working environment (humidity) relative humidity: ?98% (long-term stability under the humidity)
• Working environment (temperature) -30 ~ 80°(in the lower temperature range of long-term stability)
• Size: approx. 60*23mm

Paket İçeriği:

• 1 Adet 5S 15A Lityum Batarya BMS Koruma Kartı
• 1 Adet Bağlantı Kablosu. ( Resimlerden inceleyiniz. )
