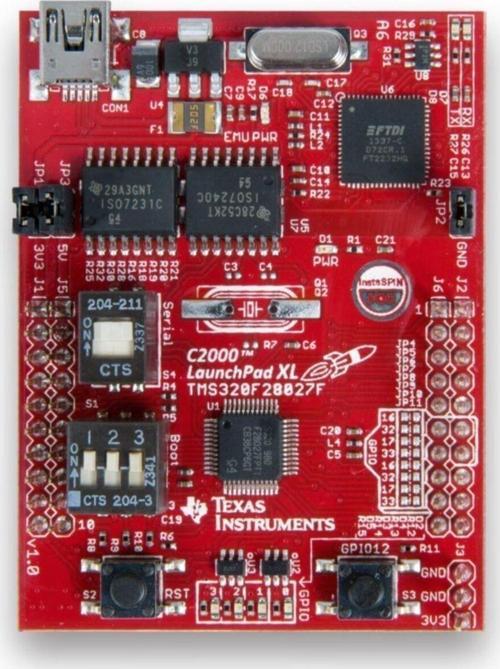

LAUNCHXL-F28027F TMS320F28027F LaunchPad

Description

LAUNCHXL-F28027F is a low cost evaluation and development tool for the InstaSPIN-FOC enabled Piccolo F2802x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Features:

Hardware features

USB connected isolated XDS100 JTAG debug probe for real-time debug and flash programming

2x 20-pin headers/connectors with access to all device pins

Programmable buttons and LEDs

TMS320F28027F: 60 MHz C28x CPU, 64 KB Flash, InstaSPIN-FOC enabled, 8 PWM Channels, 12-bit ADC, capture interface, UART, SPI and more

Software features

Free download of Code Composer Studio IDE

Free download of MotorWare for InstaSPIN-FOC example projects

Free download of controlSUITE for device drivers and example projects

MathWorks Embedded Target Support

Recommended BoosterPacks

BOOSTXL-DRV8301

BOOSTXL-DRV8305EVM

TI BoosterPack Checker for an interactive list of compatible BoosterPacks

Get started

Download and install MotorWare

Run MotorWare.exe

Browse resources and read Readme First for F28027F LaunchPad and any BoosterPack

Follow Training à InstaSPIN Projects and Labs User’s Guide

Install free GUI for instrumenting MotorWare projects

Watch 6 part training series or search for other training

Ask questions on the TI C2000 InstaSPIN e2e forum

For non-InstaSPIN getting started with this kit, please see the instructions for the standard LaunchPad

What's Included

• Piccolo F28027F LaunchPad
• Mini USB Cable
• Quick Start Guide
