Stmicroelectronics Stm32f769ı-dısco Geliştirme Kiti Discovery Kit With Stm32f769nı Mcu 4 Inchcapacitive Touch Lcd Disp
Peşin Fiyatına 6 Taksit 6 x 1.892,75 TL
616,51 TL X 36 Ay Alışveriş Kredisi Fırsatı
Kargo Bilgileri
Benzer Ürünler

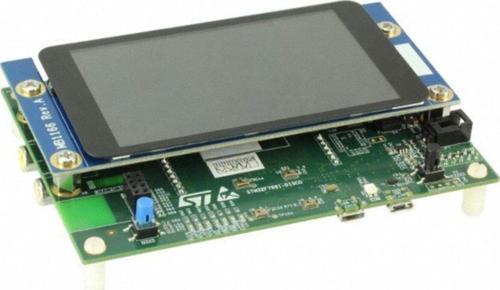

32F769IDISCOVERY
Discovery kit with STM32F769NI MCU
4" capacitive touch LCD display, 128-Mbit SDRAM, 512-Mbit Quad-SPI Flash memory, ESP01 Wifi, Ethernet,
The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontrollers based on the ARM®Cortex®-M7 core.
The discovery kit enables a wide diversity of applications taking benefit from audio, multi- sensor support, graphics, security, video and high-speed connectivity features.
The Arduino™connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.
Key Features
- STM32F769NIH6 microcontroller featuring 2 Mbytes of Flash memory and 512+16+4 Kbytes of RAM, in BGA216 package
- On-board ST-LINK/V2-1 supporting USB reenumeration capability
- USB ST-LINK functions: virtual COM port, mass storage, debug port
- 4" capacitive touch LCD display with MIPI® DSI connector (on STM32F769I-DISCO only)
- SAI audio codec
- Two audio line jacks, one for input and one for output
- Stereo speaker outputs
- Four ST MEMS microphones on DFSDM inputs
- Two SPDIF RCA input and output connectors
- Two push-buttons (user and reset)
- 512-Mbit Quad-SPI Flash memory
- 128-Mbit SDRAM
- Connector for microSD card
- Wi-Fi or Ext-EEP daughterboard connector
- USB OTG HS with Micro-AB connector
- Ethernet connector compliant with IEEE-802.3-2002
- Five power supply options:
- ST LINK/V2-1
- USB HS connector
- 5 V from RJ45 (Power Over Ethernet)
- 5 V from Arduino™ or external connector
- USB charger
- Power Over Ethernet based on IEEE 802.3af (Powered Device, 48 V to 5 V, 3 W)
- Power supply output for external applications: 3.3 V or 5 V
- Arduino™ Uno V3 connectors
- Comprehensive free software including a variety of examples, part of the STM32Cube package
- Supported by a wide choice of integrated development environments
Dikkat = Paket içerisinden mini usb kablo çıkmaz.
