Stmicroelectronics Stm32f469ı-dısco Geliştirme Kartı Stm32f469nı Mcu

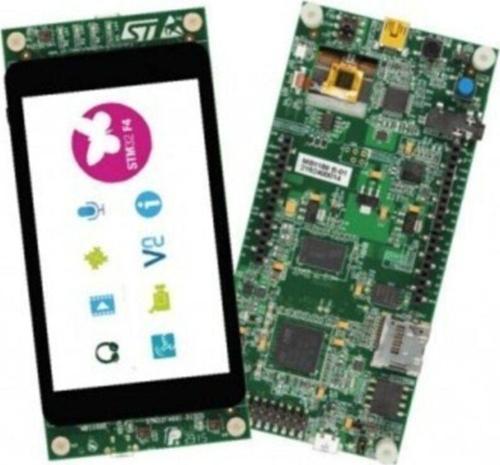

ST Microelectronics STM32F469I-DISCO Discovery Kit

Arm Cortex M4 4” 800x480 Tft Lcd STM32F469NI Mcu ST-LINK/V2 SWD Debugger 2 Mbytes Flash

     The STM32F469 Discovery kit (32F469IDISCOVERY) allows users to easily develop applications with the STM32F469 high-performance MCUs with ARM Cortex M4 core and Chrom-ART Accelerator.

     The discovery kit enables a wide range of use cases taking advantage of premium graphics, audio, multi-sensor support, WVGA color display, security, memory extension and connectivity features. An embedded ST-LINK/V2 debugger/programmer is included; specialized add-on boards can be connected thanks to the Arduino UNO or to the expansion connectors.

Features:

•     STM32F469NIH6 microcontroller featuring 2 Mbytes of Flash memory and 324 Kbytes of RAM in BGA216 package

•     On-board ST-LINK/V2-1 SWD debugger, supporting USB reenumeration capability:

•     Mbed-enabled (mbed.org)

•     USB functions: USB virtual COM port, mass storage, debug port

•     4 inches 800x480 pixel TFT color LCD with MIPI DSI interface and capacitive touch screen

•     SAI Audio DAC, with a stereo headphone output jack

•     3 MEMS microphones

•     MicroSD card connector

•     I2C extension connector

•     4Mx32bit SDRAM

•     128-Mbit Quad-SPI NOR Flash

•     Reset and wake-up buttons

•     4 color user LEDs

•     USB OTG FS with Micro-AB connector

•     Three power supply options:

•     Expansion connectors and Arduino UNO V3 connectors

•     Comprehensive free software including a variety of examples, part of STM32Cube package

•     Supported by a wide choice of integrated development environments


Paket İçeriği:

• 1 Adet STM32F469I-DISCO


Dikkat = Paket içerisinden mini usb kablo çıkmaz.
