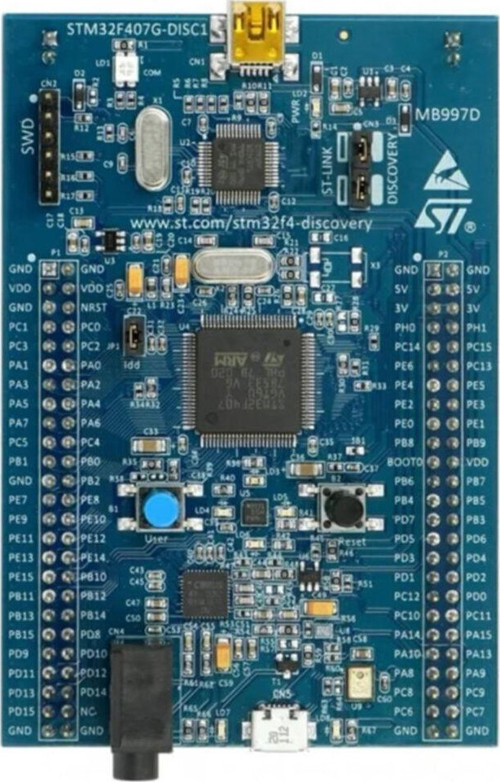

Stmicroelectronics Stm32f4 Dıscovery Stm32f407g-dısc1 Geliştirme Kiti

STM32F407G-DISC1

Discovery kit for STM32F407/417 lines - with STM32F407VG MCU

The STM32F4DISCOVERY helps you to discover the STM32F407/417 line features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F407VGT6, it includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

Alarge number of free ready-to-run application firmware examples are available on to support quick evaluation and development.

Key Features

• STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
• On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
• Board power supply: through USB bus or from an external 5 V supply voltage
• External application power supply: 3 V and 5 V
• LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer
• MP45DT02, ST MEMS audio sensor, omni-directional digital microphone
• CS43L22, audio DAC with integrated class D speaker driver
• Eight LEDs:
• LD1 (red/green) for USB communication
• LD2 (red) for 3.3 V power on
• Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
• 2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
• Two push buttons (user and reset)
• USB OTG FS with micro-AB connector
• Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

• Board Type Evaluation Platform
• Type MCU 32-Bit
• Core Processor ARM® Cortex®-M4
• Operating System -
• Platform Discovery Kit
• For Use With/Related Products STM32F407VGT6
• Mounting Type Fixed

Dikkat = Paket içerisinden mini usb kablo çıkmaz.
