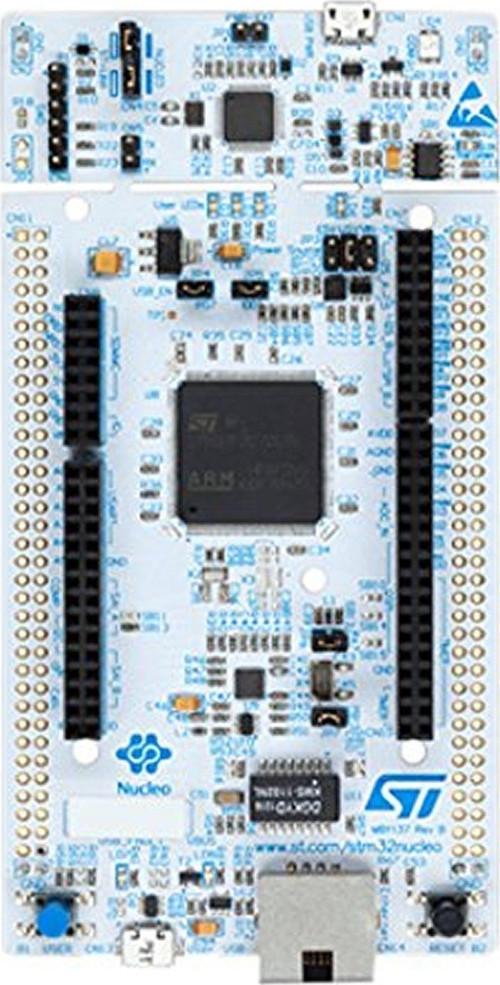

Stmicroelectronics Nucleo-h743zı2 Arduino Geliştirme Kiti

ST NUCLEO-H743ZI2

STM32 Nucleo-144 Development Board with STM32H743ZI MCU Supports Arduino, ST Zio and Morpho Connectivity

     The ST Zio connector, which extends the Arduino™ Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.

     The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

     The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Key Features

•     STM32 microcontroller in LQFP144 package

•     External SMPS to generate Vcore logic supply (only available on '-P' suffixed boards)

•     Ethernet compliant with IEEE-802.3-2002 (depending on STM32 support)

•     USB OTG or full-speed device (depending on STM32 support)

•     3 user LEDs

•     2 user and reset push-buttons

•     32.768 kHz crystal oscillator

•     Board connectors:

  •         USB with Micro-AB

  •         SWD

  •         Ethernet RJ45 (depending on STM32 support)

  •         ST Zio connector including Arduino™ Uno V3

  •         ST morpho

•     Flexible power-supply options: ST-LINK USB VBUS or external sources

•     On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, virtual COM port and debug port

•     Comprehensive free software libraries and examples available with the STM32Cube package

•     Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs, Arm® Mbed™

•     Arm® Mbed Enabled™ compliant (only for some Nucleo part numbers)


Paket İçeriği:

• 1 Adet NUCLEO-H743ZI2  Kit


Dikkat = Paket içerisinden usb kablo çıkmaz.
