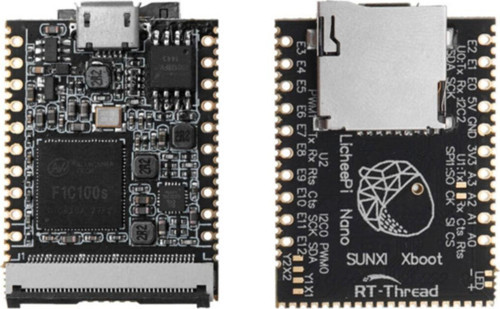

LicheePi Nano ARM926EJS SoC Development Board - 16M Flash

Lichee Nano is an SD Card Sized Linux Development Board Powered by Allwinner F1C100s ARM9 Processor

Features/Specifications

• CPU: Allwinner F1C100s, ARM 926EJS processor,up to 900MHz
• Memory & storage
• -32MB DDR integrated into SoC, 16MB SPI Flash
• -Onboard TF Slot, can be boot from TF Card,
• Display
• -40-pin RGB LCD FPC connector supporting 272×480, 480×800, 1024×600 and other resolutions resistive displays(and capacitive displays trough the adapter board).
• -Support 720P video output, support video stream decoding such as / MPEG
• Communication Interface
• -SDIO for WiFi module
• -SPI x2, TWI x3, UART x3
• -OTG USB x1, TV out
• Other interface
• -PWM x2, LRADC x1
• -Headphone output x2, Mic x1

Electrical characteristics

• -Input 5V via micro USB port, to 5V via pin
• -Output – , selectable input RTC voltage
• -Power Consumption – 54mA (idle) with Linux, 250mA with display
• -Storage Temperature: -40~125°C; operating: -20 to 70°C

Software and development environment

• Support BSP linux,
• Support mainline linux,
• Support xboot bare metal development environment
• Support RT-Thread

Target application scenario:

• IoT applications using more complex communication interfaces and protocols
• The application of human-computer interaction interface that needs more beautiful and complex logic
• Application scenarios that require more operations (as opposed to common MCUs)
• Need to use open source software under Linux for rapid development scenarios
• High-end geek players balance in size, performance and ease of use.
• Entry level player, software engineer, hardware diy using familiar language

Size and weight Core board Core board ± Precautions Start upNano needs card boot (or solder SPI flash), only plug in USB without any phenomenon System debug serial portUART0, specific position reference pin diagram USB interfaceOTG usb, power and communication Operating temperature-20~70? Part List Lichee Nanox1 OTGx1

Paket içeriği :

• 1 Adet LicheePi Nano
• 1 Adet Usb Çevirici Adaptör Soket
• 1 Adet Plastik Kutu
• 2 Adet 10 Pin Erkek Header

Garanti: Yarı mamul ürünlerin garantisi bulunmamaktadır.
