Oem Odroid Dual Stacking 30pin and 12pin Header Extenders

AÇIKLAMA

Daha uzun ODROID-XU4 ve XU4Q GPIO, ekstra 13 mm pimler ve üzerine birden fazla shield yerleştirir. 30pin Başlık Genişletici ve 12pin Başlık Genişleticiden oluşan bir settir.

Özellikler

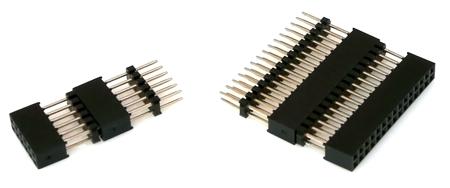

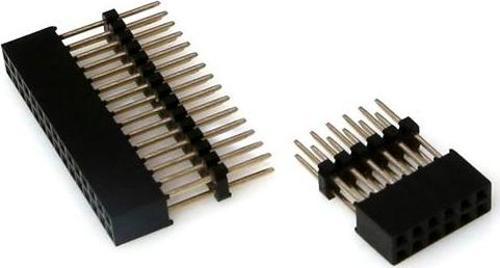

Dual stacking 30pin and 12pin Header Extenders

Taller ODROID-XU4 and XU4Q GPIO pins extra 13mm and stack multiple shields onto it. It is a set of 30pin Header Extender and 12pin Header Extender.
    30pin Header 12pin Header Dimensions 30mm x 4mm x 18mm 7mm x 4mm x 18mm Pin Spaccing 2mm 2mm Pin Thickness 0.52mm x 0.40mm 0.52mm x 0.40mm Pin array 2 x 15pins 2 x 6pins

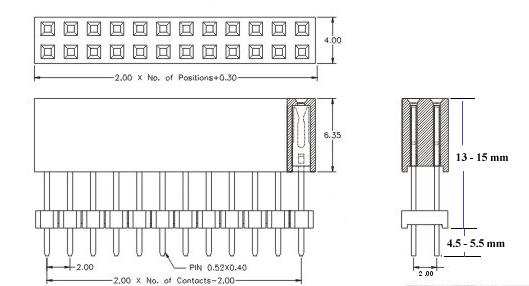

Header Socket Detail

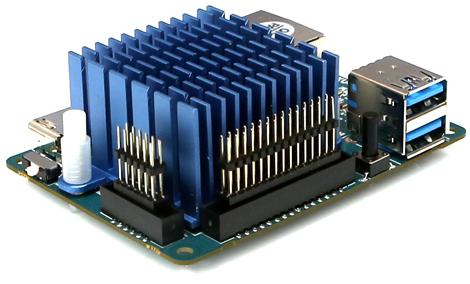

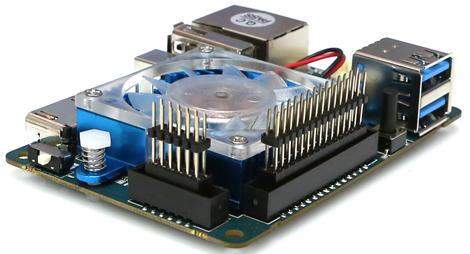

Make the GPIO pins on ODROID-XU4 and XU4Q taller.

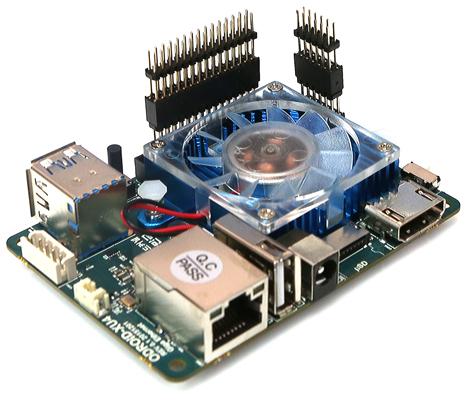

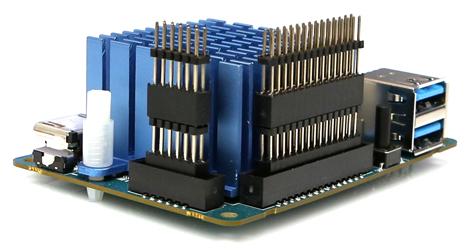

Buy two sets of Header Extenders and make the GPIO pins even taller. Stack one header extender to another.

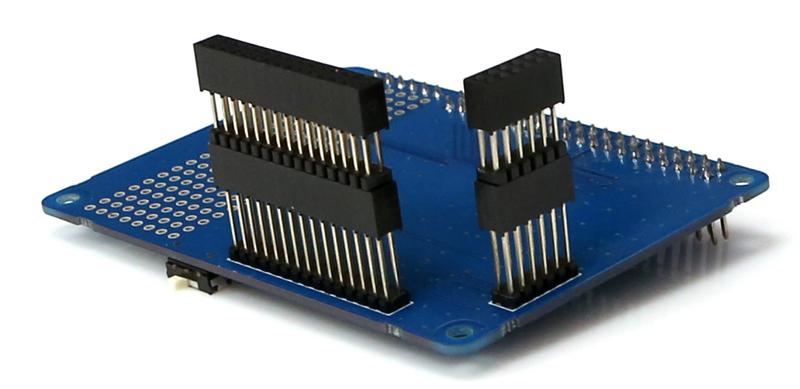

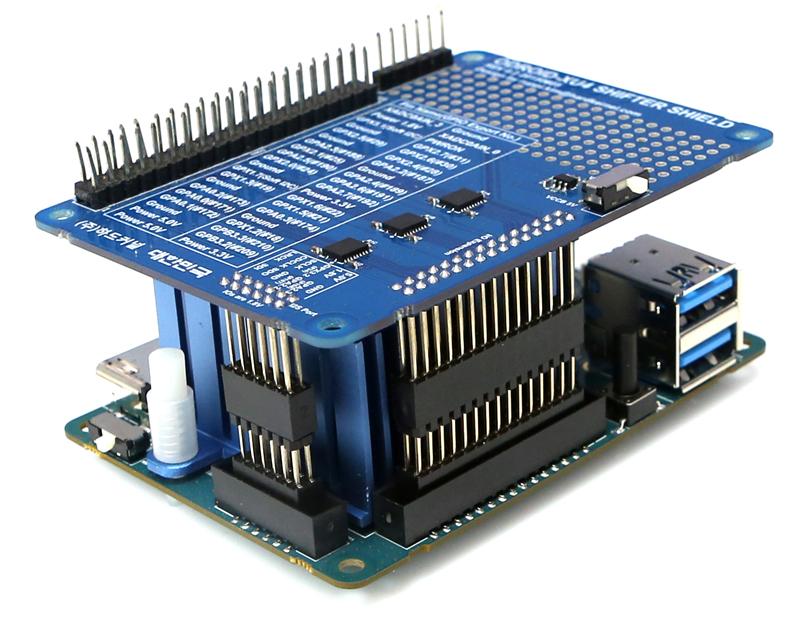

The sockets are useful when you want to make the Shifter Shield tall.
And stack it on ODROID-XU4Q

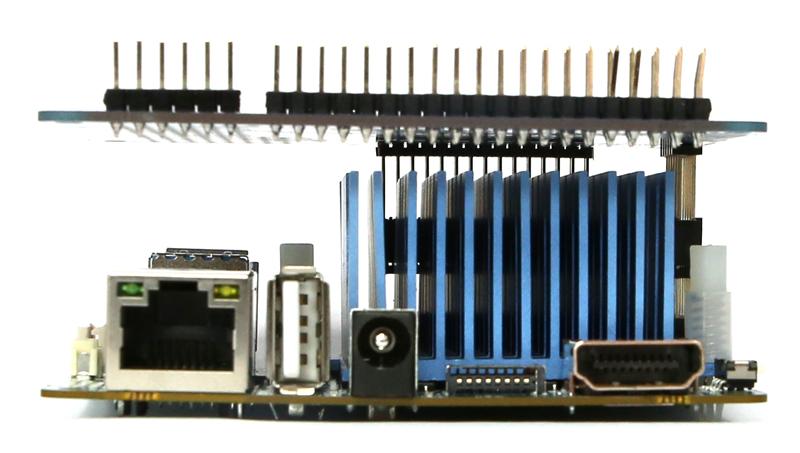

The gap between heatsink and Shifter Shield is 4mm-5mm with a set of extenders.
