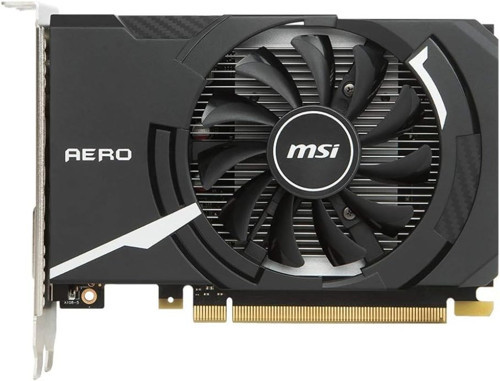

MSI GEFORCE GT 1030 AERO ITX 2GD4 OC - 2GB Ekran Kartı

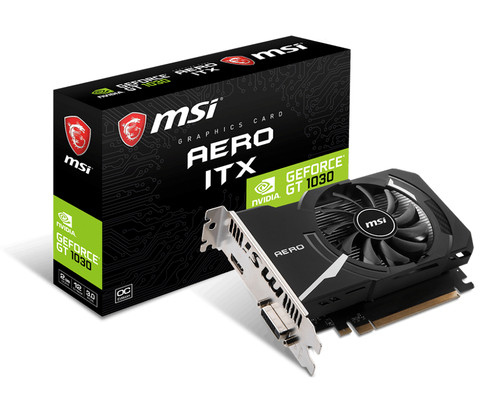

MSI AERO ITX V809-2824R görüntü kartı NVIDIA GeForce GT 1030 2 GB GDDR4

Slide 1 of 5

❮

❯



Marka: MSI

Ürün ailesi: AERO ITX

Ürün adı: V809-2824R

Ürün kodu: V809-2824R

EAN/UPC kodu: 4719072561413

• NVIDIA GeForce GT 1030 2 GB GDDR4
• 3840 x 2160 Piksel 64 bit 2100 MHz PCI Express x16 3.0
• HDMI port sayısı: 1
• DVI-D bağlantı noktası sayısı: 1
• DirectX versiyonu: 12.0 OpenGL versiyonu: 4.5
• 20 W



Brochure MSI V809-2824R (pdf)

• Ürün özellikleri

Ürün özellikleri

İşlemci

CUDA

CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.



CUDA çekirdekleri

384

Grafik işlemci ailesi

The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD)

NVIDIA

Grafik işlemci

Also known as a graphics processing unit (GPU)

GeForce GT 1030

İşlemci frekansı

The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors

1189 MHz

İşlemci artma saati hızı

1430 MHz

Maksimum çözünürlük

The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height

3840 x 2160 Piksel

Paralel işleme teknolojisi desteği

Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally

Desteklenmez

FireStream

A stream processor produced by Advanced Micro Devices (AMD) to use the stream processing/GPGPU (General Purpose Graphics Processing Units) concept for heavy floating-point computations to target various industries



Hafıza

Ayrık grafik bağdaştırıcı belleği

2 GB

Grafik adaptörü hafıza tipi

The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture

GDDR4

Hafıza yolu

Hardware and software that connects the main memory to the memory controller in computer systems. Originally

64 bit

Hafıza frekans hızı

The frequency at which the memory (e.g. RAM) runs.

2100 MHz

Bağlantı

Arayüz

PCI Express x16 3.0

HDMI port sayısı

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor

1

DVI-D bağlantı noktası sayısı

This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device

1

Performans

PhysX

PPU (microprocessor) expansion card designed by Ageia to accelerate PhysX-enabled video games.



Entegre TV ayarlayıcı

Device has an in-built TV tuner.



DirectX versiyonu

DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.

12.0

Gölgelendirici modeli versiyonu

A shader is a program used in 3D computer graphics to determine the final surface properties of an object or image. This can include arbitrarily complex descriptions of light absorption and diffusion

5.0

OpenGL versiyonu

OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives.

4.5

Performans

HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.



Çift sıralı DVI

A dual-link DVI interface sends data over both of the DVI links to the monitor



Full HD

Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel



Tasarım

Soğutma türü

The method used to cool the device or to cool the air around the device.

Aktif

Fan sayısı

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(lar)

Form faktörü

The shape or design of the product.

Full-Height/Half-Length (FH/HL)

Destek yüksekliği

Full-Height (FH)

Yuva sayısı

2

Ürün rengi

The colour e.g. red

Siyah

Enerji yönetimi

Minimum sistem güç kaynağı

The lowest power that is needed.

300 W

Güç tüketimi

Amount of power consumed by this model

20 W

Sistem gereksinimleri

Desteklenen Windows çalışma sistemleri

Windows vesions wich can be used with the device.



Desteklenen Linux çalışma sistemleri

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)



Ağırlık & boyutlar

Ağırlık

Weight of the product without packaging (net weight). If possible

281 g

Uzunluk

The measurement or extent of something from end to end.

147 mm

Derinlik

The distance from the front to the back of something.

38 mm

Yükseklik

The measurement of the product from head to foot or from base to top.

102 mm

Ambalajlama bilgisi

Paket ağırlığı

Weight of the packaged product.

507 g

Lojistik veri

Uyumlu Sistem (HS) kodu

8473302
