Devremarkt Htu21 5V Sıcaklık Ve Nem Sensör Modülü Iıc I2C Yüksek Hassasiyet Iıc Dijital Nem Sensörü Klima

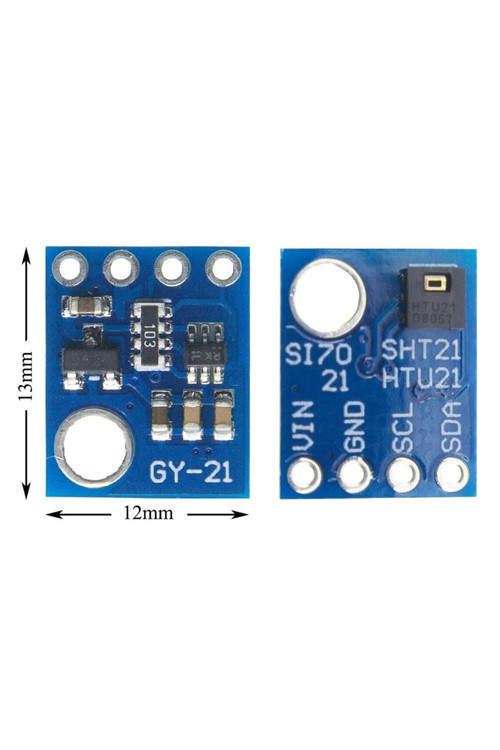

HTU21 Sıcaklık ve Nem Sensör Modülü TE firmasının HTU21 sensörü kullanılan sıcaklık ve nem algılama modülüdür.
HTU21 relative humidity sensors provide digital outputs for humidity and temperature.
The HTU21D(F) is a new digital humidity sensor with temperature output by MEAS.
Setting new standards in terms of size and intelligence, it is embedded in a reflow solderable Dual Flat No leads (DFN) package with a small 3 x 3 x 0.9 mm footprint.
This sensor provides calibrated, linearized signals in digital, I²C format.
HTU21D(F) digital humidity sensors are dedicated humidity and temperature plug and play transducers for OEM applications where reliable and accurate measurements are needed.
Direct interface with a micro-controller is made possible with the module for humidity and temperature digital outputs.
These low power sensors are designed for high volume and cost sensitive applications with tight space constraints.
Every sensor is individually calibrated and tested.
Lot identification is printed on the sensor and an electronic identification code is stored on the chip – which can be read out by command.
Low battery can be detected and a checksum improves communication reliability.
The resolution of these digital humidity sensors can be changed by command (8/12bit up to 12/14bit for RH/T).
With MEAS’ improvements and miniaturization of this sensor, the performance-to-price ratio has been improved – and eventually, any device should benefit from its cutting-edge energy saving operation mode.
Features: Relative Humidity and Temperature
Voltage: 3.6V ( Modül üzerindeki ldo sayesinde ürün 5V ile beslenir.
)
Digital Output I²C interface with I2C level shifting circuitry
4.7k pull up resistors for I2C communications.

Humidity Range RH 0 to 100 %RH
+/-3%RH max tolerance @55%RH
Temperature Range: -40 to +125 °C
Temperature Accuracy ±0.3C @25C
Fully calibrated
Fast response time
Instantaneous desaturation after long periods in saturation phase
Compatible with automatized assembly processes, including Pb free and reflow processes
Individual marking for compliance to stringent traceability requirements
Lead free sensor, reflow solderable
Low power consumption
Board size:1.2x1cm(approx)
Paket İçeriği: 1 Adet HTU21 Sıcaklık ve Nem Sensör Modülü
1 Adet 4 Pin Erkek Header.

Garanti:6 ay distribütör garantilidir.
elektriksel sorunlar ve kullanıcı hataları garanti kapsamına dahil değildir.
