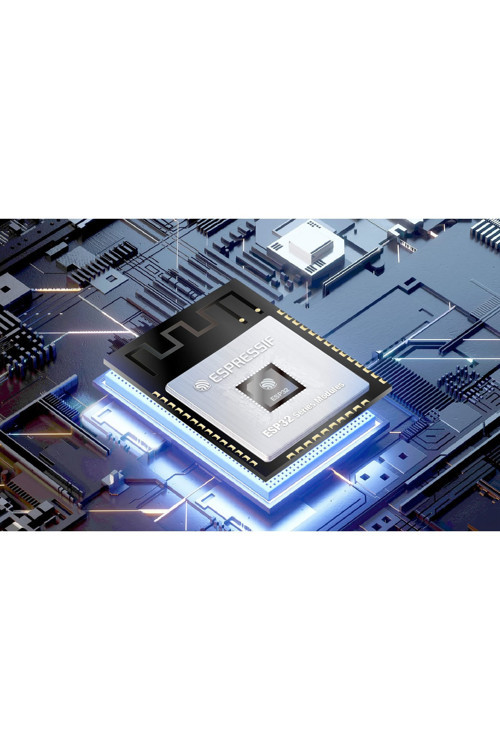

ESP32
WROOM
32E Wifi ve Bluetooth Modülü PCB Anten 4Mb Flash ESP32
D0WD
V3 Dual Cpu ESP32
WROOM
32E and ESP32
WROOM
32UE are two powerful, generic Wi
Fi+BT+BLE MCU modules that target a wide variety of applications, ranging from low
power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding
ESP32
WROOM
32E comes with a PCB antenna, and ESP32
WROOM
32UE with an IPEX antenna
They both feature a 4 MB external SPI flash
The information in this datasheet is applicable to both modules
At the core of the module is the ESP32
D0WD
V3 chip
*
The chip embedded is designed to be scalable and adaptive
There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz
The chip also has a low
power co
processor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals
ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high
speed SPI, UART, I²S and I²C
MCU • ESP32
D0WD
V3 embedded, Xtensa® dual
core 32
bit LX6 microprocessor, up to 240 MHz • 448 KB ROM for booting and core functions • 520 KB SRAM for data and instructions • 16 KB SRAM in RTC WiFi • 802
11b/g/n • Bit rate: 802
11n up to 150 Mbps • A
MPDU and A
MSDU aggregation • 0
4 ?s guard interval support • Center frequency range of operating channel: 2412 ~ 2484 MHz Bluetooth® • Bluetooth V4
2 BR/EDR and Bluetooth LE specification • Class
1, class
2 and class
3 transmitter • AFH • CVSD and SBC Hardware • Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two
Wire Automotive Interface (TWAI®, compatible with ISO11898
1) • 40 MHz crystal oscillator • 4 MB SPI flash • Operating voltage/Power supply: 3
0 ~ 3
6 V • Operating temperature range: –40 ~ 85 °C • Dimensions: 25
5mm x 18mm Certification • Bluetooth certification: BQB • RF certification: FCC/CE
RED/SRRC • Green certification: REACH/RoHS Paket İçeriği : 1 Adet ESP32 ESP
WROOM
32E
