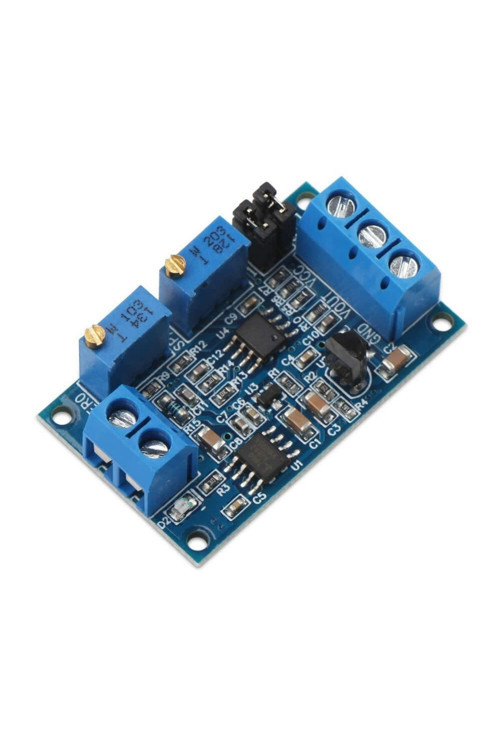

Devremarkt 4-20Ma To 0 -3.3V - 0-5V 0 -10V Modül - Akım Voltaj Çevirici

4-20ma to Voltaj Çevirici Modül It is a Voltage Transmitter/Power Supply Module, Power supply: DC 7~36V (if the output needs to be 10V, the input must be over 12V), In the process of signal transmission circuit voltage signal will increase transmission distance becomes weak, the transmission can be avoided using weak electric current signal.
suitable for in the industrial instrument for long distance signal transmission.
Service regulations: 1. Power supply: DC 7~36V (if the output needs to be 10V, the input must be over 12V) 2. After power on, the D2 indicator should be on.
Otherwise, please check the wiring.
3. The product has reverse polarity protection.
4. When the current input is at minimum (0mA or 4mA), adjust the Zero potentiometer to make the voltage output to be the minimum value (0.0V or others).
5. When the current input is at maximum (20mA), adjust the Span potentiometer to make the voltage output to be the maximum value (3.3V or 5V or 10V
the output can be as low as 2.5V when the current input is within 4 -20mA).
According to your needs, select the appropriate span through the jumper cap: ON: jumper cap buckles on the two jumper pins
OFF: two jumper pins without the jumper cap
4 -20mA: 0 -2.5V range: pin 1, 2 ON pin 3, 4 ON
0 -3.3V range: pin 1, 2 OFF pin 3, 4 OFF
0 -5.0V range: pin 1, 2 ON pin 3, 4 ON
0 -10.0V range: pin 1, 2 ON pin 3, 4 OFF
0 -20mA: 0 -3.3V range: pin 1, 2 ON pin 3, 4 ON
0 -5.0V range: pin 1, 2 ON pin 3, 4 ON
0 -10.0V range: pin 1, 2 ON pin 3, 4 OFF
Paket İçeriği : 1 Adet 4-20ma to Voltaj Çevirici Modül
Garanti:6 ay distribütör garantilidir.
elektriksel sorunlar ve kullanıcı hataları garanti kapsamına dahil değildir.
