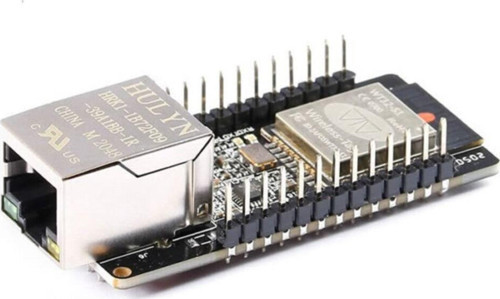

WT32-ETH01 Ethernet to Wifi / Bluetooth Gateway Modül
Embedded Serial Port Networking
İnternet Wifi Bluetooth Çevirici Haberleşme Kartı
İnternet Wifi ve bluetooth arasında haberleşme yaptırabileceğiniz geçit kartıdır. Embeded seri port yazılımı bulunmaktadır.
WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU. The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost. In addition, the module is compatible with half-pad and through-hole connectors. The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios.
Features:
- Using dual-core Xtensa 832-bit LX6 microcontroller. Integrated SPI flash memory 32 Mbit\SRAM 520 KB
- Multiple working modes using through holes and half-pads
- Support the four data ports of serial port, wifi, Ethernet and Bluetooth-compatible to be combined in pairs, and the data is transparently transmitted.
- Support complete TCP/IP protocol stack
- Support TCP server, TCP client, UDP server, UDP client working mode
- Rich wireless communication interface
- Supports four data ports of serial port, wifl, Ethernet and Bluetooth to be combined in pairs, and data is transparently transmitted
- Support to connect to the network via wired network or wifi to upgrade the firmware
- Support wifi to connect to the Internet or LAN through the router, establish tcp/udp connection, and access the user's designated service device.
- Support wired network access
- Support wifi to connect to the Internet or LAN through a router, establish a TCP/UDP connection, and access the user's designated server.
- Support user secondary development
- Industrial grade working temperature range: -40~+85
- Serial port baud rate: 80-5000000
- Network protocol: IPv 4, tcp/udp
- Software encryption: AES/RSA/ECC/SHA
- Products have passed FCC/CE/RoHS standard certification
Specifications:
| Specification | Items | Details |
| Wi-Fi | RF Certifications | FCC/CE/RoHS |
| Protocols | b/g/n/e/i( ,Up to 150 Mbps) | |
| A-MPDU and A-MSDU aggregation, s guard interval support | ||
| Frequency range | GHz | |
| Bluetooth | Protocols | Bluetooth BR/EDR and BLE standards |
| Radio | NZIF receiver with -97 dBm sensitivity | |
| Hardware | Network port specifications | RJ45, 10/100Mbps, Cross-direct connection adaptive |
| Serial baud rate | 80~5000000 | |
| On-board flash | 32Mbit | |
| Operating voltage | 5V or | |
| Operating current | Average: 80mA | |
| Supply current | Minimum: 500 mA | |
| Operating temperature | -40°C~+85°C | |
| Ambient temperature | Normal temperature | |
| Packaging | Half pad/ Through-hole connector( Optional) | |
| Software | Wi-Fi mode | Station/softAP/SoftAP+station/P2P |
| Wi-Fi security mechanisms | WPA/WPA2/WPA2-Enterprise/WPS | |
| Encryption types | AES/RSA/ECC/SHA | |
| Firmware update | Remote OTA upgrade via network | |
| Software development | SDK used for further development | |
| Networking protocol | IPv4?TCP/UDP | |
| IP access methods | Static IP?DHCP(Default) | |
| Transparent transmission modes | TCP Server/TCP Client/UDP Server/UDP Client | |
| User configurations | AT+ commands set |
Paket İçeriği:
- 1 Adet WT32-ETH01 Ethernet to Wifi / Bluetooth Gateway Modül
