Alkatronik Wemos D1 Mini V3 Esp8266 Kablosuz Internet Wifi Iot Geliştirme Kartı Micro Usb Uart Iıc Spı Ch340

Wemos D1 mini: A mini wifi board with 4MB flash based on ESP-8266EX

Wemos D1 Mini V3.0 3.0 Wireless WIFI Internet of Things Development Board

This Wemos D1 mini V3 is basically a handy breakout board of the ESP8266 chip. The CH340 USB to serial converter makes it easy to program, even as an Arduino. The board has a micro USB connection with which it can be programmed and/or powered. (micro USB cable not included). This board has the ESP8266 chip with 4MB flash memory. This third version of the D1 Mini has a slightly improved circuit board including a mounting hole (2mm) and a possibility to connect the deepsleep pin directly (solder bridge) with the reset pin. The pins on the board are directly connected to the ESP8266 chip and are therefore only suitable for 3.3V signals.

Wemos D1 mini is like a "little Arduino with wifi" for a great price. It's based around the ESP8266, has one analogue port and 11 digital ports. It's programmed via micro-USB (or remote flash via wifi). You can use it with the Arduino IDE, micropython or NodeMCU.

• It runs from 5V or 3.3V. Logic levels are 3.3V for all ports.
• If you use the Arduino IDE, there are a lot of example sketches already provided. This makes life relatively easy to be able to do what you want.
• I use these to read temperatures in various locations and send the data to a Raspberry Pi web server via wifi.
• They work well with TMP36, DS18B20, RasPiO InsPiRing RGB LEDs, PIR motion sensors, BME280 barometric pressure/temperature/humidity sensors
• 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
• 1 analog input(3.2V max input)
• a Micro USB connection
• Compatible with Arduino
• Compatible with nodemcu
• Compatible with MicroPython

What's new about V3.0.0

• Optimize the circuit
• Add Deep-Sleep jumper.
• Default firmware: lastest MicroPython ESP8266 firmware.

Microcontroller ESP-8266EX

• Operating Voltage 3.3V
• Digital I/O Pins 11
• Analog Input Pins 1(Max input: 3.2V)
• Clock Speed 80MHz/160MHz
• Flash 4M bytes
• Length 34.2mm
• Width 25.6mm
• Weight 10g

Pin Function ESP-8266 Pin TXTXDTXD RXRXDRXD A0Analog input, max 3.3V inputA0 D0IOGPIO16 D1IO, SCLGPIO5 D2IO, SDAGPIO4 D3IO, 10k Pull-upGPIO0 D4IO, 10k Pull-up, BUILTIN_LEDGPIO2 D5IO, SCKGPIO14 D6IO, MISOGPIO12 D7IO, MOSIGPIO13 D8IO, 10k Pull-down, SSGPIO15 GGroundGND 5V5V- 3V33.3V3.3V RSTResetRST

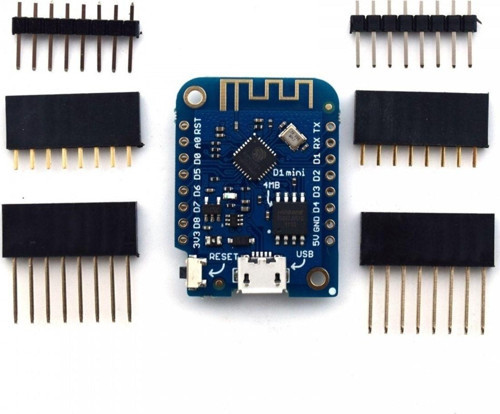

Paket içeriği :

• 1 Adet ESP8266 D1 Mini Board
• 2 Adet 8 pin erkek header
• 2 adet 8 pin dişi header
• 2 adet 8 pin stackable header
