Alkatronik Tl866ıı Plus Programlayıcı + Adaptörler + Dönüştürücüler Seti

Tl866II PLUS Programlayıcı + Adaptörler

XGECU TL866II Plus EEPROM PIC AVR TL866A USB Universal BIOS nand Programmer 24 93 25 mcu Bios EPROM

English manual download link: II_I

Latest software download link: (will be updated in the future)

Support Device List:

II

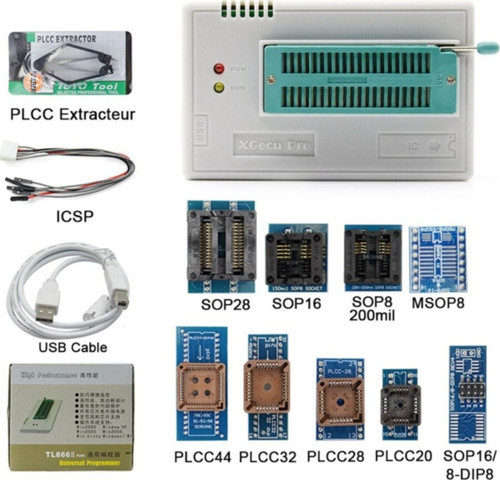

Paket İçeriği:

· 1 Adet TL866II Plus Programlayıcı

· 1 Adet Sop8/16 Dip dönüştürücü pcb

· 1 Adet Msop8 Dip dönüştürücü pcb

· 1 Adet Sop8 150 mil yaylı adaptör

· 1 Adet Sop8 200 mil yaylı adaptör

· 1 Adet Sop28 dönüştürücü

· 1 Adet Plcc20 dönüştürücü

· 1 Adet Plcc28 dönüştürücü

· 1 Adet Plcc32 dönüştürücü

· 1 Adet Plcc44 dönüştürücü

· 1 Adet 6 Pin ICSP kablo

· 1 Adet Entegre sökücü

· 1 Adet Usb kablo

· 1 Adet CD

Tl866II PLUS programmer is the improvement of TL866CS/A programmer, difference is much higher programming speed (up to 2x) of high-capacity memories. It supports multiprogramming mode (up to four ). Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small code -runs faster, supports bilingual (English and Chinese)

Product Description:

· AVR series single-chip high speed programming

· PIC series 8-bit microcontroller programming

· serial 24/25/35/45/93 series programming

· high-performance BIOS programmer

· car computer chip programming. support WIN2000 / WINXP / WIN2003 / WIN2008 / WIN VISTA /WIN7/WIN8/WIN10(32bITS AND 64BITS)

· Software version

· suport over 15000+ chips ( This number keeping update)

Outstanding Advantages :

· Support simultaneously burn with 4 Programmers each computer

· The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.

· All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.

· Best internal 40 pin over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.

· Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH

· Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP

· Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.

· Chip auto serial number is the most complete and practical.

· Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.

Support wide range of chips:

15000+ supported devices from hundreds of manufacturers by version of SW (Mar. 1th, 2018).

NAND FLASH: Samsung K9 series, SK Hynix (ex Hynix) HY27 series, H27 series, Micron MT29F series, NAND series, Spansion S34 series, NAND Toshiba TH58NVG series.

Serial NAND FLASH: Micron MT29F series.

Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25B series, 25D series, 25F series, 25L series, 25P series, 25Q series, 25S series, 25T series, 25U series, 25V series, 25W series, 25 seriesx, 26V series, 45PE series, MX26L series ).DataFlash (AT45D series, AT26D series)

Parallel NOR Flash: 28F series, 29C series, 29F series, 29BV series, 29LV series, 29W series, 49F series series, Samsung'sK8P seriesx, K8D seriesx series, ...

EPROM: NMOS/CMOS, 27 series and 27C series series

EEPROM: NMOS/CMOS, 28 series, 28C series, 27EE series series,

Serial E(E)PROM: 24 SERİES,25 SERİES series,

Microcontrollers MCS51 series:89C series, 89S series, 89E SERİES,89V SERİES

Microcontrollers Atmel AVR 8bit/16bit: AT90S seriesx, ATtiny, ATmega series

Microcontrollers Microchip PICmicro: PIC10 series, PIC12 series, PIC16 series, PIC17C series, PIC18 series, PIC24 series series

GAL Programmable logic device programming and SRAM test

I.C. Tester: TTL type: 54,74 S/LS/ALS/H/HC/HCT series; CMOS type: 4000, 4500 series;
Static RAM: 6116 ..

High Speed Programming

This programmer has Built-in MCU with high-performance and high-capacity USB interface at the communication speed of 12Mbps being in line with ( For each chip) well-designed programming algorithm and USB high-speed communications. It may be one of the fastest integrated development programmers, the speed has been met the needs of small-quantity efficient production.

Unique ultra-low power consumption

The whole programmer is equipped with the ultra-low power chips and it is furnished with electricity via USB Interface. It is the first comprehensive programmer to program all the chips without an external power supply. Their own power consumption is less than 20mA (it is 7mA when the programmer is not programming, LED power indicator use largest electricity, 5mA each one) and Programming power loss rate is less than 20% so that the programmer can supply the high VCC VPP programming electric current. Programmable chip can be provided with enough programming power (the largest programming power output is 2 watts that is impossible for a chip to use 2 watts of programming power). And you hardly feel the heat of the programmer after such long continuous work.

Easily portable performance

This is one of the smallest products in the world and the dimensions are 10CM*6CM* (it is as small as a driving license). In addition, you don't need to carry with an external power supply because of its ultra-low power that makes it more portable.

Programmable programming power supply

VPP and VCC programming voltages are independently program-controlled: programmable VCC is from to ; VPP is from to 18V. The fluctuation of power supply is minor because of the multi-stage LC filter.

Best overvoltage, overcurrent protection

VCC, VPP power supply of the Programmer is furnished with the independent Grade 3 overcurrent protection and the protection of automatically cutting off power supply. Each pin of 40-pin programming socket has VPP overvoltage protection. It can effectively prevent from putting a chip in the wrong place or short circuit due to other reason. In this programming case, it can also stop VPP high voltage from coming back to the internal of the programmer and damaging the device. Really make sure that the programmer will not be damaged when there is any worst-case short circuit. At the same time, the programmed chip can be efficiently protected.
This programmer will cut off the programming power supply VPP and VCC within 100us and send the message to the application program when there is short circuit. The programmer and PC won't be reset when there is short circuit because of the multilevel overcurrent protection.

TL866II Plus VS Old Version
