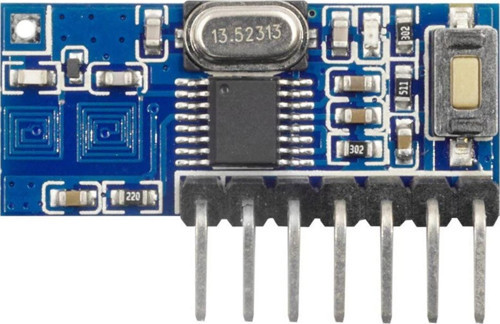

Alkatronik Rx480-e 4 Kanal 433mhz Rf Alıcı Learning Code 1527 Receiver

RX480-E 4 Kanal 433Mhz RF Alıcı

EV1527 çıkış formatlı vericiler ile kullanılabilir.

433 Mhz Mini Wireless Receiver, Learning Code 1527 Decoder Module, 4 Ch Output With Learning Button

Application environment:

Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Model: RX480-E

• Working Voltage :
• Quiescent Current : ?5mA
• Working Frequency: 315MHz / 433MHz( Others can be customized )
• Receive Sensitivity: -108dB
• Receive Distance: 15 meters above
• Frequency band: ±
• Working Temperature : -25~75
• Working mode:Point move, self-locking, interlocking
• The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.

Pins Instruction

• GND : Groud or negative pole
• +V : DC input
• D0: Data output
• D1: Data output
• D2: Data output
• D3: Data output
• VT: Output

How To Programming:?

• 1. Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
• 2. Learning remote code: press learning key once, twice or three times (see below).

LED turns on: learning mode is active. Press any button of the remote control.

LED indicator flashes three times: learning successfully completed.

• 3. Test: after the above operation , the receiver board can be controlled by the remote control .

More transmitters with different IDs can be learned and stored additionally, starting with step 2.

A mixture of different modes is possible.

Button usage (sets mode and starts pairing process):

• Press once: Inching mode (Momentary Mode)
• Press twice: Self-Lock Mode (Toggle-Mode of the 4 Channels)
• Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)

Paket İçeriği:

• 1 Adet RX480-E Alıcı Modül
• 1 Adet Anten
