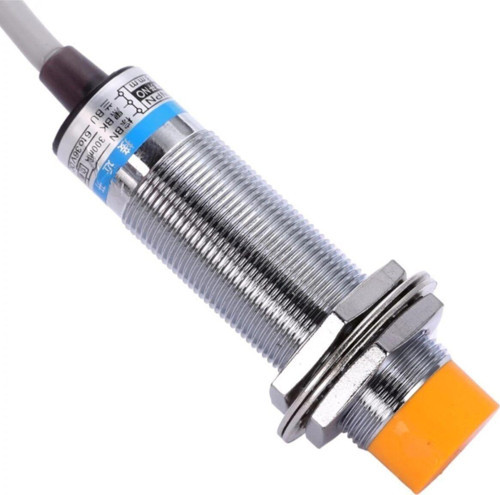

LJ18A3-8-Z/BY Endüktif Mesafe Sensörü PNP

8mm mesafeden metal cisimleri algılamak için kullanılabilecek endüstriyel tipte sensördür. 10-30VDC gerilim ile çalışır.

• LJ18A3-8-Z/BY
• Tip: İndüktif sensör Çıkış PNP NO (Normally Open)
• Çıkış: PNP NO (Normally Open)
• Sensör Çapı: 18mm
• Algılama Mesafesi: 8mm
• Besleme Gerilimi: DC 6-36V
• Çıkış Akımı: 300mA
• Boyutlar: x 3 cm
• Kablo: DC 3 Tel ( Siyah, Kahve, Mavi)
• Kablo uzunluğu: 105cm
• Dış Materyal: Plastik, alaşım
• Net Ağırlık: 70g

• Model: LJ18A3-8-Z/BY
• Material: Plastic, Alloy
• Diameter of Head:
• Detecting Distance:
• Supply Voltage: DC 6-36V
• Current Output: 300mA
• Wire Type: DC 3 Wire Type (Black, Brown, Blue)
• Switch Appearance Type: Cylinder Type
• Theory: Inductive Sensor
• Output Type: PNP NO (Normal Open)
• Detect Object: Iron External

Product information TypeLJ18A3-?-? Product image Dimension Mounting wayScreen shield typeNon-screen shield type TypeDC typeNPNNOLJ18A3-5-Z/BXLJ18A3-8-Z/BX NCLJ18A3-5-Z/AXLJ18A3-8-Z/AX NO+NCLJ18A3-5-Z/CXLJ18A3-8-Z/CX PNPNOLJ18A3-5-Z/BYLJ18A3-8-Z/BY NCLJ18A3-5-Z/AYLJ18A3-8-Z/AY NO+NCLJ18A3-5-Z/CYLJ18A3-8-Z/CY Two-wireNOLJ18A3-5-Z/EXLJ18A3-8-Z/EX NCLJ18A3-5-Z/DXLJ18A3-8-Z/DX AC typeTwo-wireNOLJ18A3-5-J/EZLJ18A3-8-J/EZ NCLJ18A3-5-J/DZLJ18A3-8-J/DZ Three-wireNO+NC Detection distance5mm ± 10%8mm ± 10% Set distance0-4mm0-7mm Delay distance10% below of the detection distance Detection objectMagnetic metal(the detection distance decreases when it is non-magnetic metal) Standard detection objectIron 8*8*1mm Response AC:25kHz Supply voltageDC type:DC 12-24V(6-36V)Impulse(P-P)10% below

AC type:AC 110-220V(36-250V)50/60Hz

Withstand voltageAC1000V 50/60HZ 1min between charging part and housing Voltage influenceInside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance Consumption type:13mA below, D below,A below Control type:300mA below, D type:200mA below,A type:400mA below Loop type:reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption Ambient temperature & humidityDuring operation,storage:individually -30—+65°

( no freeze, no drew),During operation,storage:individually 35—95% RH

Temperature influenceTemperature range -30—+65°,at+23°, ±15%detection distance

Temperature range -25—+60°,at+23°, ±10%detection distance

Insulation impedance50M? above(DC500 megameter)between charging part and housing MaterialHousing:Nickel plated brass Detection surface:ABS Protection levelIP67( IEC specification)

Kablo Bağlantıları:

• Kahverengi: Besleme +
• Mavi: GND
• Siyah: Data Çıkışı

Paket içeriği:

• 1 Adet LJ18A3-8-Z/BY Endüktif Mesafe Sensörü PNP
