Alkatronik Kablolu 10k Ntc 100cm Montaj Delikli

Su geçirmez korumaya sahip NTC 10K sensör, 100cm, Montaj Delikli

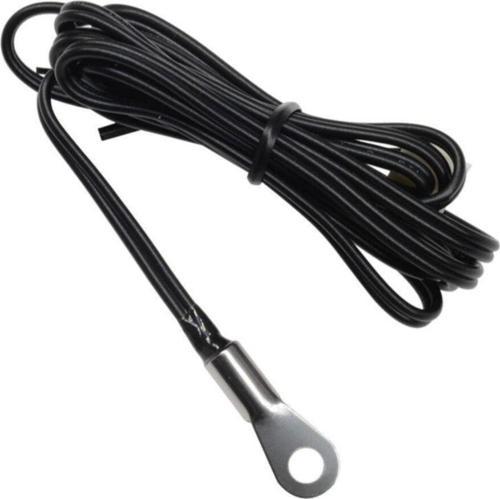

100cm NTC Waterproof Fixed Mounting Hole Probe 10K 1% 3950 with Fixed Mounting Hole

CWF Precision NTC temperature sensor is a high precision, high reliability NTC with PVC Wire connection, encapsulated in the desired shape with insulation, heat conduction and waterproof material, easy to install and far Distance measurement temperature control.

Applications:

For frequency converters, household air conditioners, automotive air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters, dishwashers, disinfection cabinets, washing machines, dryers, medium and low temperature drying ovens, incubators, etc.

Temperature measurement and control.

Description:

• The most important parameters:
• Resistance and accuracy R25: 10k? ± 1% (at25 ° C)
• B value and accuracy B25 / 50: 3950 carats ± 1%
• Derivation coefficient: 2 mw / ° C (in air)
• Thermal time constant: 15 s (in air)
• Rated power: mw (at 25 ° C)
• Operating temperature: -30 ~ 105 ° C
• Copper ring model inside diameter 4mm

Features:

• New process, stable product performance and long-term work. (Annual resistance drift rate ? 1%)
• The resistance value and the B value are high accuracy, good in consistency, and replaceable. (The resistance value and B value precision can each Up to ± 5%)
• high sensitivity and fast reaction. (The temperature coefficient of resistance reach- (2 ~ 5)% / ° C)
• It adopts double-layer sealing process, has good insulation sealing and anti-mechanical collision, anti-bending ability and high reliability.
• It can be packed according to the installation conditions used, which is convenient for the users to install.
• Can be used in high-derivative products, the test current can be much higher than the traditional structure of the sensor simplifies the test circuit.

Paket İçeriği :

• 1 Adet Kablolu 10K NTC Sensör 100cm
