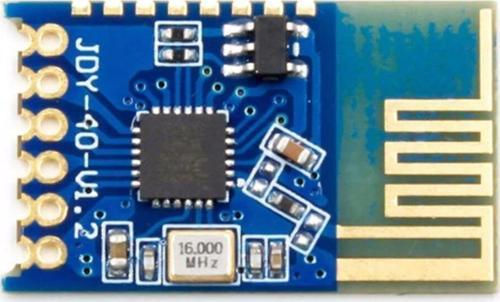

JDY-40 Wireless Serial Transceiver

JDY-40 Wireless Serial Port Transmission Transceiver and Remote Communication Module IO TTL

Kablosuz Alıcı Verici Modül - Seri Haberleşme TTL IO Kontrol Modülü

Description:

JDY-40 is developed with technology, the sight distance is 120 meters, using serial port communication interface, using simple and fast, only need to understand the serial knowledge of the JDY-40 can be applied to the product.

Pin function description:

PinThe name of the disciplineFunction 1GPI01Input-output IO, which can be configured by AT+CLSS 2GPI02Input-output IO, which can be configured by AT+CLSS 3GPI03Input-output IO, which can be configured by AT+CLSS 4GPI04Input-output IO, which can be configured by AT+CLSS 5GPI05Input-output IO, which can be configured by AT+CLSS 6GPI06Input-output IO, which can be configured by AT+CLSS 7GPI07Input-output IO, which can be configured by AT+CLSS 8GPI08Input-output IO, which can be configured by AT+CLSS 9VCCPower supply ( 10RXDSerial port input pin 11TXDSerial port output pin 12SETAT command switching pin (low level AT instruction, high level transparent transmission) 13CSTransmission or push button mode: CS pin (low level wake-up, high level sleep).

IO receive mode:the CS pin needs to be suspended or pulled up 14GNDPower supply

Applications:

• panel switch
• remote control
• transmission
• One to many control of mobile phone
• IO switching control
• toys
• Smart home control application

Technical parameter:

ModelJDY-40 Working Emissive powerMaximum 12dB working temperature-40 C - 80 C Reception sensitivity-97db transmission distance120 meters working TX current40mA RX current24mA Sleep current5uA communication interfaceStandard TTL serial port

Default configuration:

sequencefunctionparameterinstructions 1baud rate9600AT+BAUD 2wireless ID8899AT+RFID8899 3device ID1122AT+DVID1122 4channel001AT+RFC001 5emissive power12dbAT+POWE9 6equipment typeA0AT+CLSSA0

Communication:

It is necessary to configure the RFC, DVID, and RFID that need the communication module to be the same. The module and the module can communicate. When the module comes out, the parameters are all unified, and the user can configure it according to its own needs.

AT instruction instructions:

Specifically, the JDY-40 module needs to add the ending symbol rn to send the AT instruction.

Set / query - baud rate:

instructionsresponseresponse

AT+BAUD

OKParam(1-7)

1:1200

2:2400

3:4800

4:9600

5:14400

6:19200

Default value:4

AT+BAUD

+BAUD=

Set / query -RFID:

instructionsresponseresponse AT+RFIDOKParam(0000-FFFF)

Default value:8899 AT+RFID+BAUD=

Set / query -DVID:

instructionsresponseresponse AT+DVIDOKParam(0000-FFFF)

Default value:8899 AT+DVID+BAUD=

Set / query -RFC:

instructionsresponseresponse AT+RFCOKParam(001-128)

Default value:001 AT+RFC+RFC=

Paket İçeriği :

• 1 Adet JDY-40 Wireless Serial Transceiver
