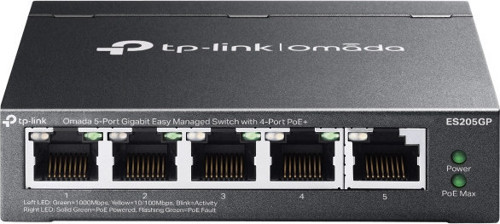

TP-Link ES205GP Omada 5 Port Gigabit 4 Port PoE+ 65W Metal PoE Switch

Tp-Link ES205GP Omada 5 Port Gigabit 4 Port PoE+ 65W Metal PoE Switch DONANIM ÖZELLİKLERİArabirim• 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)• Auto-Negotiation/Auto MDI/MDIXFan SayısıFanlessKurulum• Desktop• Wall MountFiziksel Güvenlik Kilidi√Güç KaynağıDC Power Adapter (Output: 53.5 VDC/ 1.31 A)PoE Portları (RJ45)• Standard: 802.3af PoE and 802.3at PoE+ compliant• PoE Ports: 4 ports• PoE Budget: 65 W available for all PoE+ ports, 30W max per port• PoE Auto Recovery‡• Up to 250m PoE transmission distance**Boyutlar ( W X D X H )3.9×3.9×1.0 in (100×98×25 mm)PERFORMANSAnahtarlama Kapasitesi10 GbpsPaket Yönlendirme Hızı7.4 MppsMAC Adres Tablosu8KPaket Buffer Belleği4 MbitJumbo Frame15 KBYAZILIM ÖZELLİKLERİQuality of Service• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?L2 Özellikleri• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDPL2 Multicast• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast LeaveVLAN• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VIDİletim MetoduStore-And-ForwardYÖNETİMOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized Management• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement Features• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†DİĞERLERİSertifikaFCC, CE, RoHSPaket İçeriği• ES205GP&b
