Stmicroelectronics STM32F401CCU6 48qfn Entegre 32 Bit Arm Cortex-M4 Risc Mcu Dsp Fpu 256 Kbytes Flash Memory 84 MHz Cpu

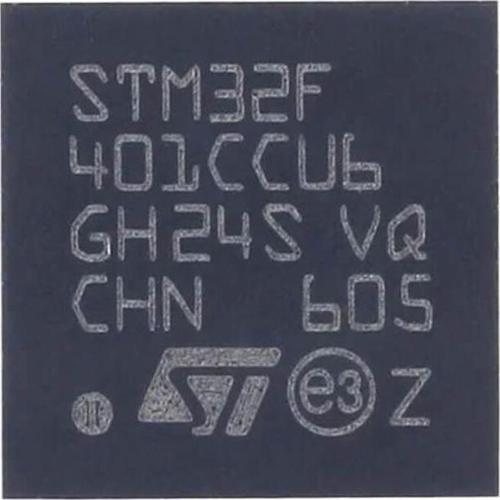

STM32F401CCU6 48qfn Entegre

32 Bit Arm Cortex-M4 Risc Mcu Dsp Fpu 256 Kbytes Flash Memory 84 MHz Cpu Art Accelerator I2C Irda LINbus Sdio Spi Uart Usb Adc Rtc

The STM32F401CCU6 devices are based on the high-performance Arm Cortex-M4 32-bit RISC core operating at a frequency of up to 84 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F401xB/STM32F401xC incorporate high-speed embedded memories (up to 256 Kbytes of Flash memory, up to 64 Kbytes of SRAM), and an extensive range of improve I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer one 12-bit Adc, a low-power Rtc, six general-purpose 16-bit timers including one PWM timer for motor control, two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.

The STM32F401xB/STM32F401xC operate in the -40C to 125C temperature range from a 1.7 (PDR OFF) to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.

Features:

• Core processor: ARM Cortex-M4
• Core size: 32-Bit
• Speed: 84MHz
• Connectivity: I2C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG
• Peripherals: Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
• Number of I/O: 36
• Program memory size 256KB (256K x 8)
• Program memory type Flash
• Ram size 64K x 8
• Voltage supply (Vcc/Vdd) 1.7V / 3.6V
• Data Converters A/D 10x12b
• Oscillator type: Internal
• Operating temperature -40C / 85C (TA)
• Mounting type: Surface Mount
• Package: 48-UFQFN Exposed Pad

Features:

• Dynamic efficiency line with BAM (batch acquisition mode)
• 1.7 V to 3.6 V power supply
• -40C to 85/105/125C temperature range
• Core: Arm 32-bit Cortex-M4 CPU with FPU, Adaptive real-time accelerator ( ART Accelerator ) let 0-wait state execution from Flash memory, frequency up to 84 MHz, memory protection unit, 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
• Memories
• Up to 256 Kbytes of Flash memory
• 512 bytes of OTP memory
• Up to 64 Kbytes of SRAM
• Clock, reset and supply management
• 1.7 V to 3.6 V application supply and I/Os
• POR, PDR, PVD and BOR
• 4-to-26 MHz crystal oscillator
• Internal 16 MHz factory-trimmed RC
• 32 kHz oscillator for RTC with calibration
• Internal 32 kHz RC with calibration
• Power consumption
• Run: 128 µA/MHz (peripheral off)
• Stop (Flash in Stop mode, fast wakeup time): 42 µA typ 25C;65 µA max 25C
• Stop (Flash in Deep power down mode, slow wakeup time): down to 10 µA typ 25C; 28 µA max 25C
• Standby: 2.4 µA 25C / 1.7 V without RTC; 12 µA 85C 1.7 V
• VBAT supply for RTC: 1 uA 25C
• 1×12-bit, 2.4 MSPS A/D converter: up to 16 channels
• General-purpose DMA: 16-stream DMA controllers with FIFOs and burst support
• Up to 11 timers: up to six 16-bit, two 32-bit timers up to 84 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input, two watchdog timers (independent and window) and a SysTick timer
• Debug mode
• Serial wire debug (SWD) & JTAG interfaces
• Cortex®-M4 Embedded Trace Macrocell
• Up to 81 I/O ports with interrupt capability
• All IO ports 5 V tolerant
• Up to 78 fast I/Os up to 42 MHz

Paket içeriği :

• 1 Adet STM32F401CCU6 48QFN Entegre
