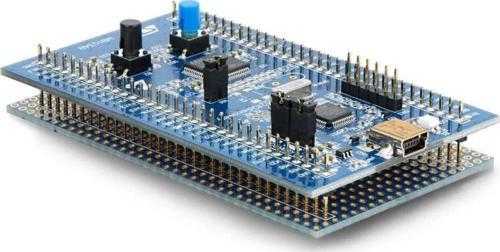

ST STM32F051 STM32F0DISCOVERY Discovery Kit + Proto Pcb

STM32F051R8T6 Cortex M0 Arm 48 MHz Mcu Geliştirme Kartı ST-LINK V2 Jtag Programlayıcı 64Kb Flash Motor Control CEC Functions

The STM32F0DISCOVERY helps you to discover the STM32F0 Cortex-M0 features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F051R8T6, it includes an ST-LINK/V2 embedded debug tool, LEDs, pushbuttons and an additional prototyping board for easy connection of additional components and modules.

A large number of free ready-to-run application firmware examples are available on to support quick evaluation and development.

Features:

• STM32F051R8T6 microcontroller featuring 64Kb Flash, 8Kb RAM in an LQFP64 package
• Clock Frequency 48 MHz / 38 DMIPS
• On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
• Board power supply: through USB bus or from an external 5 V supply voltage
• External application power supply: 3 V and 5 V
• Four LEDs:
• LD1 (red) for 3.3 V power on
• LD2 (red/green) for USB communication
• LD3 (green) for PC9 output
• LD4 (blue) for PC8 output
• Two push buttons (user and reset)
• Up to 36 I/Os with 5 V tolerant capability
• Extension header for all LQFP64 I/Os for quick connection to prototyping board and easy probing
• Up to two I2Cs, up to two SPIs, one I2S, one HDMI CEC and up to two USARTs
• One 12-bit ADC, one 12-bit DAC, six 16-bit timers, one 32-bit timer and an advanced-control PWM timer
• An additional board is provided which can be connected to the extension connector for even easier prototyping and probing.

Paket İçeriği:

• 1 Adet STM32F0 DISCOVERY

Dikkat = Paket içerisinden mini usb kablo çıkmaz.
