Stmicroelectronics St-lınk V2 Arm Mcu Jtag Swim Swd Programlayıcı Debugger (ORİJİNAL ST ÜRÜNÜ)

ST ST-LINK V2 Arm Mcu Jtag SwimSwd Programlayıcı Debugger

Stm8 Stm32 Mcu Microcontrollers Mini Usb Icsp in Circuit Programmer Emulator

Orijinal ST üründür.

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontroller families. The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

STM8 applications use the USB full-speed interface to communicate with the ST Visual Develop (STVD-STM8) or ST Visual Programmer (STVP-STM8) software, or with integrated development environments from third-parties.

STM32 applications use the USB full-speed interface to communicate with the STM32CubeIDE software tool or with integrated development environments from third-parties.

Features:

• 5 V power supplied by a USB connector
• USB 2.0 full speed compatible interface
• USB standard A to mini B cable
• SWIM specific features
• 1.65 V to 5.5 V application voltage supported on SWIM interface
• SWIM low-speed and high-speed modes supported
• SWIM programming speed rate: 9.7 Kbytes/s in low speed and 12.8 Kbytes/s in high speed
• SWIM cable for connection to the application via an ERNI standard vertical or horizontal connector
• SWIM cable for connection to the application via a pin header or a 2.54 mm pitch connector
• JTAG specific features
• 1.65 V to 3.6 V application voltage supported on the JTAG interface and 5 V tolerant inputs
• JTAG cable for connection to a standard JTAG 20-pin pitch 2.54 mm connector
• Direct firmware update feature supported (DFU)
• Status LED which blinks during communication with the PC
• Operating temperature -10C to 70C

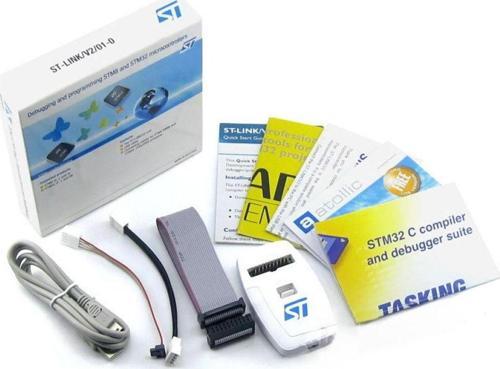

Paket içeriği :

• ST-LINK V2
• USB standard A to mini B cable
• JTAG or SWD and SWV flat ribbon with a 20-pin connector
• SWIM flat ribbon 4-pin, 2.54 mm
• SWIM flat ribbon with a standard ERNI connector

Ürün tanıtım ve destek sayfası
