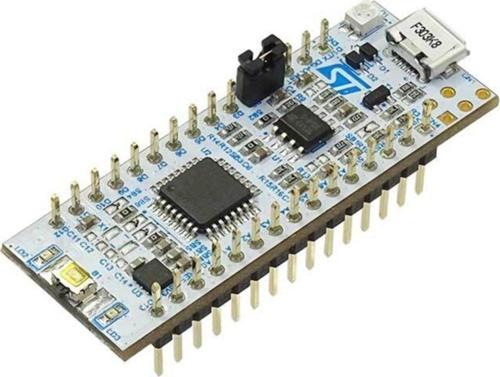

Stmicroelectronics Nucleo-f303k8 Arduino Geliştirme Kiti

STM32 Nucleo-32 development board with STM32F303K8T6 MCU

Supports Arduino Nano connectivity

On Board STLINK V2

The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features.The Arduino™nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields.The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as direct access to the ARM®mbed™on-line resources.

• STM32 microcontrollers in 32-pin packages
• Extension with Arduino™nano connectivity
• ARM®mbed™-enabled (see
• On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
• USB VBUS
• External source
• Three LEDs:
• USB communication (LD1), power LED (LD2), user LED (LD3)
• Reset push button
• Supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs (AC6 SW4STM32, ...)

STM32F303K8T6 Microcontroller features

• STM32F303K8T6 in LQFP32 package
• ARM®32-bit Cortex®-M4 CPU with FPU
• 72 MHz max CPU frequency
• VDD from 2.0 V to 3.6 V
• 64 KB Flash
• 16 KB SRAM
• Timers Advanced Control (1)
• Timers General Purpose (5)
• Basic Timers (2)
• SPI/I2S (1)
• I2C (1)
• USART (2)
• CAN (1)
• 12-bit ADC (2), 9 channels
• 12-bit DAC (2), 3 channels
• GPIO (25) with external interrupt capability
• RTC

Dikkat = Paket içerisinden micro usb kablo çıkmaz.
