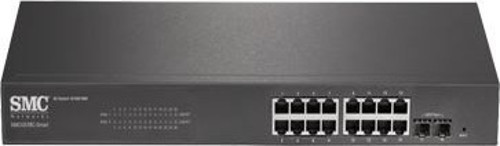

SMC GS18C 16 PORT GIGABIT WEB SMART SWICH

Marka

SMC

ÜrüKodu

SMCGS18C

PERFORMANCE

16 10/100/1000BASE-T RJ-45 ports

2 Gigabit Ethernet SFP slots

(SFP ports support dual speed 100/1000BASE-X)

Switching Capability 36 Gbps

Packet Buffer Size 512KB

MAC Address Table 8K

Flash 16MB

L2 FEATURES

Auto-negotiatiofor port speed and duplex mode

Flow Control

IEEE 802.3x for full-duplex mode

Back-Pressure for half-duplex mode

Spanning Tree Protocol

IEEE 802.1D Spanning Tree Protocol (STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

STP Auto Edge

VLANs

Supports 4K IEEE 802.1Q VLANs

Port-based VLANs

Voice VLAN

Private VLAN

Link Aggregation

Static Trunk

IEEE 802.3ad Link AggregatioControl Protocol

Trunk groups 9 trunk links Up to 12 ports

IGMP Snooping

nIGMP snooping v1/v2/v3

IGMP immediate leave

Supports jumbo frames up to 10 KB

QoS FEATURES

Priority Queues 8 hardware queues per port

Traffic classificatiobased oIEEE 802.1p CoS, DSCP,

Supports WRR, Strict scheduling, or hybrid mode

Rate Limiting

Ingress Resolutio16 Kbps

Egress Resolutio16 Kbps

SECURITY

Port security static and dynamic

Supports IEEE 802.1X port based and MAC-based

EAPOL transparent

MAC authentication

Web authentication

HTTPS/SSL

SSH v1.5/v2.0

MAC Filter/IP Filter

DHCP Snooping

MANAGEMENT

Switch Management

Web management

SNMP v1/v2/v3

Firmware and Configuration

upgrade/downgrade via TFTP/HTTP

Supports DHCP Client

Supports LLDP (802.1ab) and LLDP-MED

RMO(groups 1, 2, 3, and 9)

Port mirroring one to one and many to one

Event log local flash, syslog, remote server (RFC3164) and SMTP

(RFC821)

SNTP (IPv4/IPv6)

Loop detectioand prevention

UPnP

Cable diagnostics

IPv6 management

IPv4/IPv6 dual protocol stack

IPv6 address types unicast/multicast

IPv6 Ping/tracert

ICMPv6 and ICMPv6 redirect

IPv6 neighbor discovery

IPv6 stateless auto config/manual config

IPv6 Telnet/SNMP/HTTP/DHCP

MECHANICAL

Dimensions (W x D x H)

43 x 18 x 4.4 cm

Weight TBD

LED Indicators Port, Uplink, System, Diagnostic

AC Power

100 to 240 V, 50-60 Hz, 0.5A

Power Supply

Internal, auto-ranging transformer 100 to 240 VAC, 47 to 63 Hz

Power Consumption

20 Watts for System Power

ELECTROMAGNETIC COMPATIBILITY

CE Mark

FCC Class A

E55022 (CISRP 22) Class A

E61000-3-2/3

ENVIRONMENTAL SPECIFICATIONS

Temperature

-0°C to 50°C (standard operating)

-40°C to 70°C (non-operating)

Humidity 10% to 90% (non-condensing)

Vibration IEC 68-2-36, IEC 68-2-6

Shock IEC 68-2-29

Drop IEC 68-2-32

SAFETY

CSA (CSA 22.2 NO 60950-1 & UL 60950-1)

CB (IEC/EN60950-1)

Garanti

2 Yıl
