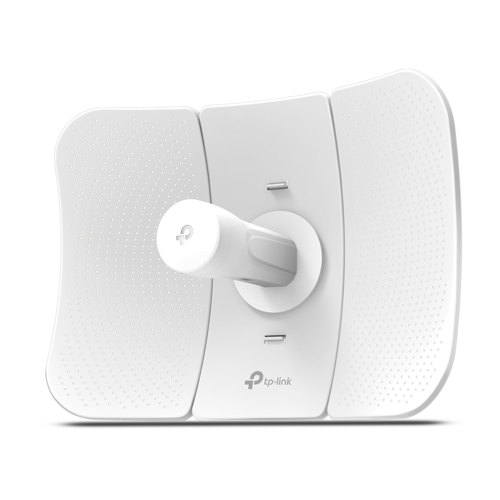

Shopwave TP-LINK CPE605, 150Mbps, 5Ghz WiFi, 23dbi Anten, Noktadan Noktaya, Dış Mekan, Access Point CPE
- Ürün Açıklaması
- Ürünün Özellikleri
- İptal İade Koşulları
Soru ve Cevap (0)
| Ethernet Portu | : | 1 Adet |
| Anten | : | Dahili |
| Wi-Fi Veri Transfer Hızı | : | 150 MBPS |
| Kullanım Yeri | : | Dış Ortam |
| 3G-4G Desteği | : | Yok |
| DONANIM ÖZELLİKLERİ | |
|---|---|
| İşlemci | Qualcomm 560MHz CPU, MIPS 74Kc |
| Bellek | 64MB DDR2 RAM,8MB Flash |
| Arabirim | 1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
| Güç Kaynağı | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Boyutlar ( W X D X H ) | 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.) |
| Anten Kazancı | 23dBi |
| Anten Beamwidth | 7°(Azimuth), 10°(Elevation) |
| Koruma | 15KV ESD Protection 6KV Lightning Protection |
| Muhafaza | Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design |
| KABLOSUZ ÖZELLİKLERİ | |
|---|---|
| Kablosuz Standartlar | IEEE 802.11a/n |
| Tescilli Protokol | TDMA Mode (with Pharos MAXtream enabled) |
| Kablosuz Hızı | Up to 150Mbps (40MHz,Dynamic) Up to 72.2Mbps (20MHz,Dynamic) Up to 36.1Mbps (10MHz,Dynamic) Up to 18.05Mbps (5MHz,Dynamic) |
| Frekans | 5.15~5.85GHz |
| İletim Gücü | Max. 23dBm (Adjustable power by 1dBm) |
| YAZILIM ÖZELLİKLERİ | |
|---|---|
| IPv6 | Yes |
| Ağ Yapılandırma | WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding |
| Kablosuz Konfigürasyonlar | Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Long Range PtP |
| Yönetim | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| Sistem Araçları | Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute Antenna Alignment |
| Sistem Düzeyindeki Optimizasyonlar | Optimized IGMP Snooping/Proxy for multicast applications |
| DİĞERLERİ | |
|---|---|
| Sertifika | CE, FCC, RoHS, IP65 |
