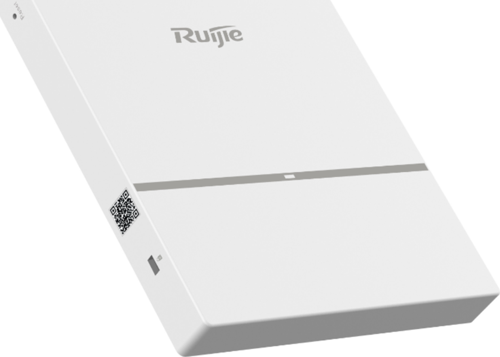

Ruijie Reyee Rg-Ap820-L(V2) 2.4 5Ghz 802.11Ax 2.4Gbps 1 Port Gigabit Lan Wifi 6 İç Ortam Access Point

Ruijie Reyee RG-AP820-L(V2) 2.4 Ve 5GHZ 802.11AX 2.4GBPS 1 Port Gigabit Lan Wifi 6 İç Ortam Access Point

Anten SayısıGizliTipİç Ortam (Indoor)Port Sayısı1 x 10/100/1000 LAN PORTAğ İletişim Hızı2400 MbpsHarici Anten DesteğiYok



Model RG-AP820-L(V2)Hardware specificationsRadio

Dual-radio dual-band：

Radio 1: 2.4G 11ax/5G 11ax: 2×2 MIMO

Radio 2: 5G 11ax: 2x2 MIMO

ProtocolSupports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/acOperating Bands

802.11b/g/n/ax ：2.4G ~ 2.483GHz

802.11a/n/ac/ax ： 5.150～5.350GHz，5.47～5.725GHz，5.725～5.850GHz (vary depending on different countries)

Spatial StreamsUp to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHzMax Throughput

Maximum throughput (5G+5G mode) per AP: 2.4Gbps

Radio1：5G low band 1.2Gbps

Radio2：5G high band 1.2Gbps



2.4G+5G operation mode, maximum throughput per AP: 1.775Gbps

Radio1：2.4G 0.574Gbps

Radio2：5G 1.2Gbps

Modulation

OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps

DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps

MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM

OFDMA (up to 1024-QAM)

Receiver Sensitivity

11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）

11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps）

11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15）

11ac HT20：-88dBm（MCS0）, -63dBm（MCS9）

11ac HT40：-85dBm（MCS0）, -60dBm（MCS9）

11ac HT80：-82dBm（MCS0）, -57dBm（MCS9）

11ax HT80：-82dBm（MCS0）, -57dBm（MCS9）, -52dBm（MCS11）

AntennaIntegrated antenna designAntenna Gain

2.4G: 3dBi

5G: 3dBi

Service Ports1 10/100/1000M Ethernet ports, PoE In Management Port1 console portReset ButtonSupportAnti-theft LockSupportLED Indicator1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)Transmit Power≤100mw（20dBm） (vary depending on different countries)Adjustable Power1dBmPower Supply

Local power supply (DC 48V/1A) （DC Power adapters should be purchased from third-party vendors separately if needed）

PoE (802.3af) – full spectrum operation

Power Consumption＜12.95WPhysical SpecificationsTemperatureOperating Temperature: -10°C to 50°CStorage Temperature: -40°C to 70°CHumidityOperating Humidity: 5% to 95% (non-condensing)Storage Humidity: 5% to 95% (non-condensing)Installation ModeCeiling/wall-mountableDimensions (W x D x H)153mm ×193mm x26mm（Height of the AP only, excluding the mount kit）Weight≤0.5kg (include mount kit)MTBF250,000 hoursCertifications and ComplianceWi-Fi Alliance

· Wi-Fi CERTIFIED™ a, b, g, n, ac

· Wi-Fi CERTIFIED 6™

· WPA3™-Enterprise, Personal

· Wi-Fi Enhanced Open™

· Wi-Fi Agile Multiband™

· WMM®

Safety StandardGB4943, EN/IEC 62368-1EMC StandardGB9254, EN301 489Radio StandardSRRC, EN300 328, EN301 893Software SpecificationsWLANMaximum clients per AP1024 (Recommended Client: 64)BSSID capacityUp to 32SSID hidingSupport5G Priority (Band Steering)SupportConfiguring the authentication mode, encryption mechanism and VLAN attributes for each SSIDSupportRemote Intelligent Perception Technology (RIPT)SupportIntelligent device recognition technologySupportIntelligent load balancing based on the number of users or trafficSupportSTA controlSSID/radio-basedBandwidth controlSTA/SSID/AP-based bandwidth controlData encryptionWPA（TKIP）, WPA-PSK, WPA2（AES）, WPA3, WEP（64/128 bits）PSK and web authenticationSupportPPSK authentication (For Employee)Support (require wireless controller)802.1x authenticationSupportPEAP authenticationSupportData frame filteringWhitelist, static/dynamic blacklistUser isolationSupportRogue AP detection and countermeasureSupportDynamic ACL assignmentSupportRADIUSSupportCPU Protection Policy (CPP)SupportNetwork Foundation Protection Policy (NFPP)SupportIPIPv4 and IPv6 addressSupportMulticast routingMulticast to unicast conversionDHCP serviceDHCP Snooping, Option 82, Server, ClientManagement and MaintenanceSupported wireless LAN controllers

Ruijie WS Series Wireless Controller

Ruijie MACC-Base Software Controller

Ruijie Cloud (Public Cloud)

Management protocolTelnet, SSH, TFTP, WebWireless Intelligent AI Optimization Service (WIS)SupportSNMPSNMPV1,V2c,V3LLDPLLDP, LLDP-MED, LLDP-POESyslog / DebugSupportFAT/FIT/MACC mode switchingFactory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
