Olimex Qmtech Altera Intel Fpga Development Board Cyclone 10 10cl016 Sdram

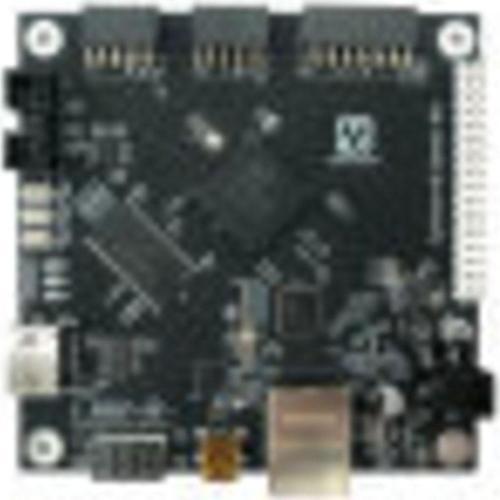

QMTECH Altera Intel Cyclone 10 10CL016 FPGA Development Board

Usb Ethernet Hdmi 50Mhz 16K Logic Cells 32MB SDRAM 8Mb Flash Starter Kit

•     FPGA: 10CL016YU484C8G

•     10CL016 has rich RAM resource

•     10CL016 has 16K logic cells

•     Winbond SPI Flash W25Q64, 8M bytes for user configuration code

•     W9825G6KH-6 32MB Winbond SDRAM

•     50MHz External crystal frequency

•     Ethernet interface RealTek RTL8211EG

•     HDMI interface

•     USB to UART serial port by using CP2102N;

•     3.3V power supply for FPGA by using MP2315 wide input range DC/DC;

•     Camera interface, 2xPMOD headers,

•     TF Card Slot and 40P Male header for User IOs;

•     JTAG interface, by using 10p, 2.54mm pitch header;

•     7-SEG LEDs

•     3 user LEDs

•     3 user switches

•     Power source for board is: 1A@5V DC, the DC header type: DC-050, 5.5mmx2.1mm;

•     PCB size is: 9.96cm x 9.96cm;


Wiki:   github.com/ChinaQMTECH/CYCLONE_10_STARTER_KIT

Packing List:

•     One QMTECH CYCLONE 10 STARTER KIT Development Board.

•     One USB 2.0 cable Type A to Mini B, Male to Male 5 Pin.

•     One USB to 5V cable.

•     Schematic, User Manual, Test Program are provided via Github
