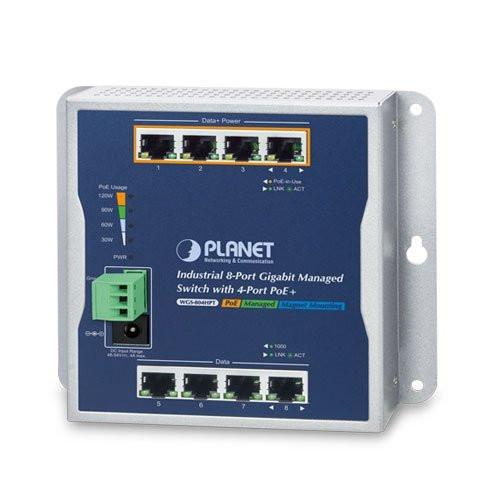

Planet PL-WGS-804HPT 8 Port Gigabit 4 Port PoE+ Yönetilebilir Endüstriyel Switch

Planet PL-WGS-804HPT 8 Port Gigabit 4 Port PoE+ Yönetilebilir Endüstriyel SwitchHardware SpecificationsCopper Ports    8-Port 10/100/1000BASE-T RJ45 auto-MDI/MDI-X portsPoE Inject Port    4-Port with 802.3af/802.3at PoE injector function (Port-1 to Port-4)Reset Button    < 5 sec: System reboot> 5 sec: Factory defaultConnector    Removable 3-pin terminal block for power input?Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)?Pin 3 for earth groundDC power jack with 2.0mm central polePower Requirements    48~54V DC, 4A (max.)Power Consumption/ Dissipation    DC 48V – 2.4W/8.19BTU/hr (no loading); 155.2W/529.56BTU/hr (full loading)DC 54V – 2.7W/9.21BTU/hr (no loading); 154.6W/527.52BTU/hr (full loading)Dimensions (W x D x H)    148 x 24.2 x 134 mmWeight    532gESD Protection    Contact Discharge 4KV DCAir Discharge 8KV DCEnclosure    IP30 metalInstallation    Wall mount, magnetic wall mount and DIN-rail kitLED    Power LED:Power (Green)PoE Power Usage LED:30W, 60W, 90W, 120W (Amber)PoE Port(Port-1 to Port-4) :PoE-in-Use (Amber)LNK/ACT (Green)10/100/1000BASE-TX Port (Port-5 to Port-8) :1000 (Green)LNK/ACT (Green)Switch SpecificationsSwitch Architecture    Store-and-ForwardSwitch Fabric    16Gbps/non-blockingSwitch Throughput@64 bytes    11.9Mpps @64 bytesMAC Address Table    8K entriesShared Data Buffer    4.1 megabitsFlow Control    IEEE 802.3x pause frame for full-duplexBack pressure for half-duplexJumbo Frame    10KBPower over EthernetPoE Standard    IEEE 802.3af/802.3at Power over Ethernet PSEPoE Power Supply Type    End-spanPoE Power Output    IEEE 802.3af Standard?Per port 48V~54V DC (depending on the power supply), max. 15.4 wattsIEEE 802.3at Standard?Per port 50V~54V DC (depending on the power supply), max. 36 wattsPower Pin Assignment    PoE Power Budget    144 watts (depending on power input)Max. Number of Class 2 PDs    4Max. Number of Class 3 PDs    4Max. Number of Class 4 PDs    4PoE Management FunctionsPoE Management    PD Alive CheckScheduled Power RecyclingPoE SchedulePoE Usage MonitoringPoE ExtensionEnhanced PoE Mode    Standard/Legacy/ForceActive PoE Device Live Detection    YesPoE Power Recycling    Yes, daily or predefined schedulePoE Schedule    4 schedule profilesPoE Extend Mode    Yes, max. up to 250 metersLayer 2 FunctionsPort Mirroring    TX/RX/BothMany-to-1 monitorUp to 4 sessionsVLAN    802.1Q tagged VLANUp to 256 VLAN groups, out
