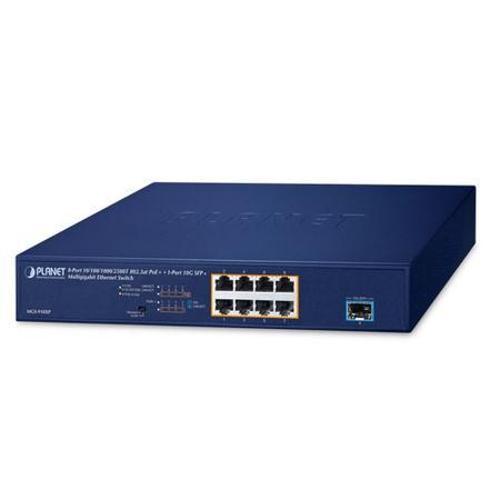

Planet PL-MGS-910XP 8 Port Gigabit 1 Port 10G SFp+ MultiGigabit 120W PoE Switch

Planet PL-MGS-910XP 8 Port Gigabit 1 Port 10G SFp+ MultiGigabit 120W PoE Switch Hardware Specifications10/100/1000/2500BASE-T Copper Interfaces810GBASE-X SFP+ interface1DIP SwitchSelectable operation mode?Standard?VLANLEDSystem?Power (Green)10/100/1000/2500T RJ45 Interfaces?10/100/1000 LNK / ACTAmber)?2500 LNK / ACT (Green)?PoE-in-Use(Amber)10G SFP+ Interface?LNK / ACT (Green)Weight1739gPower Requirements100~240V AC, 3A, 50-60HzPower Consumption/Dissipation140 watts/447.6BTUThermal Fan1Dimensions (W x D x H)280 x 180 x 44mmESD ProtectionContact discharge of ±6KV DC,Air discharge of ±8KV DCSurge Protection±6KVSwitchingSwitch ArchitectureStore-and-ForwardSwitch Fabric60GbpsSwitch Throughput@64bytes44.64MppsMAC Address Table4K entriesJumbo Frame12KFlow ControlIEEE 802.3x pause frame for full duplex; back pressure for half duplexPower over EthernetPoE StandardIEEE 802.3at Power over Ethernet Plus/PSEPoE Injector Ports8PoE Power Supply TypeEnd-span: 1/2 (+), 3/6 (-)PoE Power OutputPer port 54 DC, 300mA. max. 15.4 watts (IEEE 802.3af)Per port 54V DC, 600mA. max. 32 watts (IEEE 802.3at)PoE Power Budget120 wattsNumber of PDs, 7 watts8Number of PDs, 15.4 watts7Number of PDs, 30 watts4Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStandards ComplianceIEEE 802.3 (Ethernet)IEEE 802.3u (Fast Ethernet)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3bz (2.5Gigabit Ethernet)IEEE 802.3ae 10Gbps EthernetIEEE 802.3x (Full-Duplex Flow Control)IEEE 802.3af Power over EthernetIEEE 802.3at Power over Ethernet PlusIEEE 802.3az Energy Efficient Ethernet (EEE)EnvironmentTemperatureOperating: 0~50 degrees CStorage: -10~70 degrees CHumidity(non-condensing)Operating: 5% to 95%Storage: 5% to 95%
