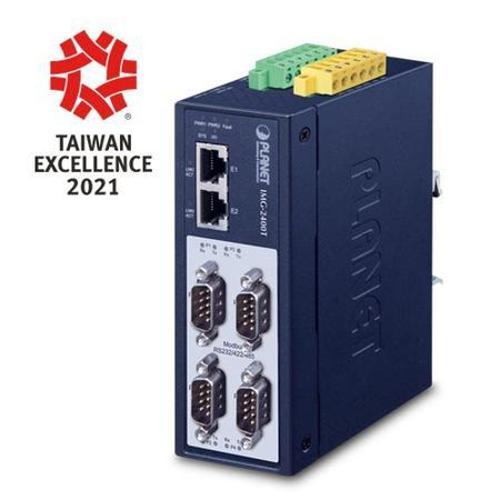

Planet PL-IMG-2400T 4 Port RS232 RS422 RS485 2 Port 10/100TX Endüstriyel Gateway

Planet PL-IMG-2400T 4 Port RS232 RS422 RS485 2 Port 10/100TX Endüstriyel GatewaySerial InterfaceSerial Ports4 x DB9 maleSerial StandardsRS232 / 4-wire RS422 or RS485 / 2-wire RS485Baud Rate (Data Rate)50bps to 921KbpsData Bits5, 6, 7, 8Parity Type1, 1.5, 2Stop BitOdd, Even, None, Space, MarkFlow ControlRTS/CTS and DTR/DSR (RS232 only)XON/XOFFSignalsRS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GNDRS422: Tx+, Tx-, Rx+, Rx-, GND4-wire RS485: Tx+, Tx-, Rx+, Rx-, GND2-wire RS485: Data A (+), Data B (-), GNDPin AssignmentPinRS232RS422RS485-4WRS485-2W1DCDTxD+--2RxDTxD---3TxDRxD-Data-4DTRRxD+Data+5GNDGNDGND6DSR----7RTS----8CTS----9------Operation ModeRTU Master/RTU Slave/ASCII Master/ASCII SlaveMaster mode: Supports up to 32 TCP slave connection requestsSlave mode: Supports up to 32 TCP master connection requestsSerial Line Protection2KV isolation protection1KV (level 2) surge protection15KV ESD protectionEthernet InterfaceEthernet Ports2 x RJ45Standard10/100BASE-TXDistance100mSwitch ArchitectureStore-and-ForwardAddress Table1KESD Protection6KVSurge Protection2KVHardwareInstallationDIN-rail kit and wall-mount earEnclosureIP 40 metalDimensions (W x D x H)50 x 87 x 135 mmWeight625gLED IndicatorsSystem: Power 1, Power 2, Fault, SYS,I/OTP Port: Link/ ActiveSerial Port: Tx and RxPower Requirements12~48V DC, redundant power with reverse polarity protectionPower ConsumptionFull Loading12VDC: 0.419A (5.1 watts)24VDC: 0.227A (5.4 watts)48VDC: 0.136A (6.5 watts)ConnectorRemovable 6-pin terminal block for power inputPin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2DI and DO2 Digital Input (DI):Level 0: -24V~2.1V (±0.1V)Level 1: 2.1V~24V (±0.1V)Input Load to 24V DC, 10mA max.2 Digital Output (DO):Open collector to 24V DC, 100mA max.AlarmProvides one relay output for power failureAlarm relay current carry ability: 1A @ DC 24VReset Button< 5 sec: System reboot> 5 sec: Factory defaultManagementManagement InterfacesWeb managementTelnet Console ma
