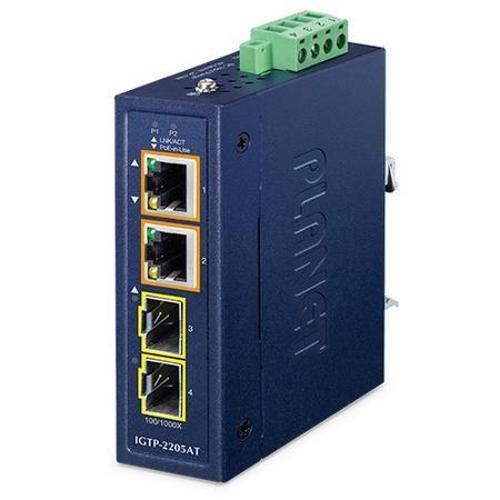

Planet PL-IGTP-2205AT 2 Port Gigabit 2 Port SFP PoE+ Compact Endıstriyel Media Converter

Planet PL-IGTP-2205AT 2 Port Gigabit 2 Port SFP PoE+ Compact Endıstriyel Media Converter Hardware SpecificationsCopper Port2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports with PoE injector functionSFP Port2 1000BASE-SX/LX/BX SFP interfacesCompatible with 100BASE-FX SFPFlow ControlBack pressure for half duplex modeIEEE 802.3x pause frame for full duplex modeMaximum Frame Size9KLEDSystem: P1/P2 (Green)Fiber 100/1000BASE-X:LNK/ACT (Green)TP 10/100/1000BASE-T:LNK/ACT(Green)PoE: Power-in-use (Amber)Dimensions (W x D x H)30 x 70 x 104 mmWeight260 gPower RequirementsDC 48~54V, redundant power with reverse polarity protection function(>51V DC for PoE+ output recommended)Power ConsumptionSystem ON without loading?DC 48V: 1.44W/4.91BTU?DC 54V: 1.62W/5.53BTUFull loading with PoE?DC 48V:81.6W/ 278.43 BTU?DC 54V:82.1W/ 280.14 BTUEnclosureIP30 metal caseInstallationDIN-rail kit and wall-mount kitESD Protection6KV DCCables10/100/1000BASE-T:?2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters)?EIA / TIA-568 100-ohm STP (maximum 100 meters)100BASE-FX/1000BASE-SX/LX:?Multi-mode: 50/125μm or 62.5/125μm optical fiber?Single-mode: 9/125μm optical fiberPower Over EthernetPoE StandardIEEE 802.3at Power over Ethernet PlusPoE Power Output48~54V DC: 30 watts per portPoE Power Supply TypeEnd-spanPower Pin Assignment1/2(+), 3/6(-)PoE Power Budget60 watts
