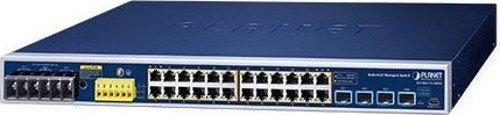

Planet PL-IGS-R4215-24P4X 24 Port Gigabit PoE+ 4 Port 10G SFP+ L2 Yönetilebilir PoE Switch

Planet PL-IGS-R4215-24P4X 24 Port Gigabit PoE+ 4 Port 10G SFP+ L2 Yönetilebilir PoE Switch Hardware SpecificationsCopper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 24)PoE Injector Port24 ports with 802.3at PoE+ injector function (Ports 1 to 24)SFP+ Ports4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4)Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceiversConsole1 x USB Type-C to RS232 serial port (115200, 8, N, 1)Reset Button< 5 sec: System reboot> 5 sec: Factory defaultTerminal BlockFixed 6-pin terminal block for power input?Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2Removable 6-pin terminal block for DI/DO interface?Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GNDAlarmOne relay output for port breakdown and power failure.Alarm relay current carry ability: 3A @ 24V DCDigital Input (DI)2 digital input (DI)?Level 0: -24V~2.1V (±0.1V)?Level 1: 2.1V~24V (±0.1V)?Input load to 24V DC, 10mA max.Digital Output (DO)2 digital output (DO)?Open collector to 24V DC, 100mA max.EnclosureIP30 metal caseInstallationRack-mount kitDimensions (W x D x H)444 x 200 x 44.2 mm, 1U heightWeight3250gPower RequirementsDual 48-54V DC, 12A max.Power Consumption/ DissipationMax. 10.7 watts / 36.6 BTU (system on)Max. 486 watts / 1658.4 BTU (Full loading)EFT Protection6KV DCESD Protection6KV DCLEDSystem:?DC1 (Green)?DC2 (Green)?Alarm (Red)?Ring (Green)?R.O. (Green)?I/O (Red)Per 10/100/1000T RJ45 PoE+ Ports:?Left: 1000 LNK/ACT (Green)??? 10/100 LNK/ACT (Amber)?Right: 802.3at (Amber)Per 10G SFP+ Interface:?1G/2.5G LNK/ACT (Green)?100/10G LNK/ACT (Amber)Switching SpecificationsSwitch ArchitectureStore-and-forwardSwitch Fabric128Gbps/non-blockingSwitch Throughput@64Bytes95.23Mpps @64BytesAddress Table16K MAC address table with auto learning functionShared Data Buffer12MbitsFlow ControlIEEE 802.3x pause frame for full duplexBack pressure for half duplexJumbo Frame12KBytesPower over EthernetPoE StandardIEEE 802.3at Power over Ethernet Plus PSEPoE Power Supply TypeEnd-spanPoE Power OutputIEEE 802.3af Standard?Per port 48V~54V DC (depending on the power supply), max. 15.4 wattsIEEE 802.3at Standard?Per port 50V~54V DC (depending on the power supply), max. 36 wattsPower Pin Assignment1/2(+), 3/6(-)Power Power BudgetSingle Power input: 240W maximumDual Power input: 440W maximum?Dual power input must be the sam
