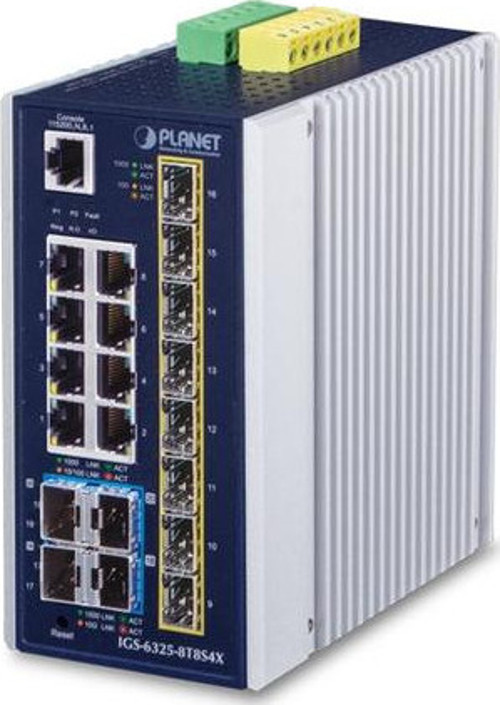

Planet PL-IGS-6325-8T8S4X 8 Port 1000T 8 Port SFP+ 4 Port 10G SFP Endustriyel Yönetilebilir Switch

Planet PL-IGS-6325-8T8S4X 8 Port 1000T 8 Port SFP+ 4 Port 10G SFP Endustriyel Yönetilebilir Switch Hardware SpecificationsCopper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X portsSFP Ports8 100/1000/2500BASE-X SFP slot interfaces (Port-9 to Port-16)Compatible with 100BASE-FX and 2500BASE-X SFP transceiverSFP+ Ports4 10GbBASE-SR/LR SFP+ slot interfacesCompatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiverConsole1 x RJ45-to-RS232 serial port (115200, 8, N, 1)Switch ArchitectureStore-and-ForwardSwitch Fabric136Gbps/non-blockingThroughput83.33Mpps@64BytesAddress Table16K entries, automatic source address learning and agingShared Data Buffer32MbitsJumbo Frame10K bytesSDRAM512MbytesFlash Memory64MbytesFlow ControlIEEE 802.3x pause frame for full duplexBack pressure for half duplexReset Button< 5 sec: System reboot> 5 sec: Factory defaultConnectorRemovable 6-pin terminal block for power inputPin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2Removable 6-pin terminal block for DI/DO interfacePin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GNDAlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DCDigital Input (DO)2 digital input:Level 0: -24~2.1V (±0.1V)Level 1: 2.1~24V (±0.1V)Input load to 24V DC, 10mA max.Digital Output (DO)2 digital output:Open collector to 24VDC, 100mAEnclosureIP30 aluminum caseInstallationDIN-rail or wall mountingDimensions (W x D x H)76.8 x 107.3 x 152 mmWeight1,250gPower RequirementsDC 12~48V, 4A max.AC 24V, 2A max.Power ConsumptionDC input:Max. 12 watts/41BTU (system on)Max. 38.4 watts/132 BTU (Full loading)AC 24V input:Max. 13 watts/45BTU (system on)Max. 38 watts/130 BTU (Full loading)ESD Protection6KV DCSurge Protection4KV DCLED IndicatorsSystem:?Power 1 (Green), Power 2 (Green)?Fault Alarm (Red)?Ring (Green), Ring Owner (Green)?DIDO (Red)Per 10/100/1000T RJ45 Port:?1000Mbps LNK/ACT (Green)?10/100Mbps LNK/ACT (Amber)Per SFP Port:?1000Mbps LNK/ACT (Green)?100Mbps LNK/ACT (Amber)Per SFP+ Port:?10Gbps LNK/ACT (Amber)?1Gbps LNK/ACT (Green)Layer 2 FunctionsPort ConfigurationPort disable/enableAuto-negotiation 10/100/1000Mbps full and half duplex mode selectionFlow control disable/enablePort link capability controlPort StatusDisplay each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk statusPort MirroringTX/RX/
