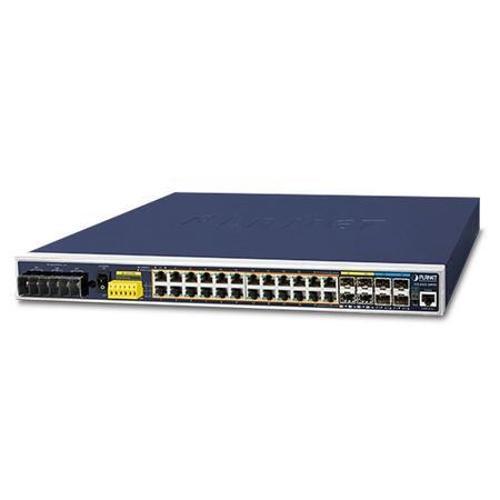

Planet PL-IGS-6325-24P4X 24 Port PoE+ 4 Port SFP+ L3 Yönetilebilir PoE Switch

Planet PL-IGS-6325-24P4X 24 Port PoE+ 4 Port SFP+ L3 Yönetilebilir PoE Switch Hardware SpecificationsCopper Ports24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X portsSFP/mini-GBIC Slots4 100/1000BASE-X SFP interfaces, shared with Port-21 to Port-24Backward compatible with 100BASE-FX SFP transceiverSFP+ Slots4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)Backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFPPoE Injector Port24 ports with 802.3af/at PoE injector function with Port-1 to Port-24Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)Switch ArchitectureStore-and-ForwardSwitch Fabric128Gbps/non-blockingThroughput (packet per second)95.2Mpps@ 64 bytes packetAddress Table16K entries, automatic source address learning and agingShared Data Buffer32M bitsFlow ControlIEEE 802.3x pause frame for full duplexBack pressure for half duplexJumbo Frame10K bytesReset Button< 5 sec: System reboot> 5 sec: Factory defaultESD Protection5KV DCEnclosureIP30 metal caseInstallationRack-mountable kitConnectorFixed 6-pin terminal block for power inputPin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2Removable 6-pin terminal block for DI/DO interfacePin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GNDAlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DCDI&DO2 digital input (DI):Level 0: -24V~2.1V (±0.1V)Level 1: 2.1V~24V (±0.1V)Max. input current: 10mA2 digital output (DO):Open collector to 24V DC, 100mA max.LED IndicatorsSystem:?DC 1 (Green)?DC 2 (Green)?Fault Alarm (Red)?Ring (Green)?Ring Owner (Green)?DIDO (Red)Per 10/100/1000T RJ45 PoE+ Interfaces (Port 1 to Port 24):?PoE-in-Use (Amer)?LNK/ACT (Green)100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):?1000Mbps LNK/ACT (Green)?100Mbps LNK/ACT (Amer)1/2.5/10Gbps SFP+ Interfaces (Port 25 to Port 28):?1G/2.5G LNK/ACT (Green)?10Gbps LNK/ACT (Amer)Dimensions (W x D x H)440 x 300 x 44 mm, 1U heightWeight3800gPower RequirementsDual 48~56V DC (>53V DC for PoE+ output recommended), 11APower ConsumptionMax. 33 watts/112.51 BTU (Power on without any connection)Max. 540 watts/1841.13 BTU (Full loading with PoE function)Power Over EthernetPoE StandardIEEE 802.3at Power over Ethernet Plus/PSEPoE Power Supply TypeEnd-spanPoE Power OutputIEEE 802.3af Standard- Per port 48V~51V DC (depending on the power supply), max. 15.4 wattsIEEE 802.3at Standard- Per port 52V~56V DC (depending on the power s
