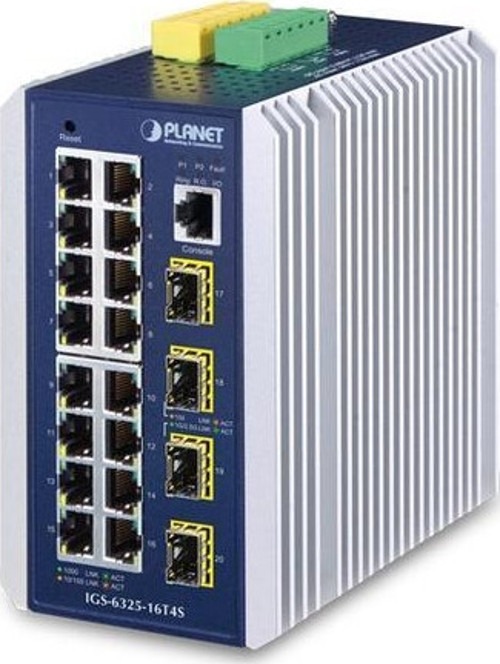

Planet PL-IGS-6325-16T4S 16 Port Gigabit 4 Port SFP L3 Endüstriyel Yönetilebilir Switch

Planet PL-IGS-6325-16T4S 16 Port Gigabit 4 Port SFP L3 Endüstriyel Yönetilebilir Switch Hardware SpecificationsCopper Ports16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X portsSFP Ports4 100/1000/2500BASE-X SFP slot interfaces (Port-17 to Port-20)Compatible with 100BASE-FX SFP transceiverSFP+ PortsN/AConsole1 x RJ45-to-RS232 serial port (115200, 8, N, 1)SDRAM512MbytesFlash Memory64MbytesFlow ControlIEEE 802.3x pause frame for full duplexBack pressure for half duplexReset Button< 5 sec: System reboot> 5 sec: Factory defaultConnectorRemovable 6-pin terminal block for power inputPin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2Removable 6-pin terminal block for DI/DO interfacePin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GNDAlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DCDigital Input (DI)2 digital input:?Level 0: -24~2.1V (±0.1V)?Level 1: 2.1~24V (±0.1V)?Input load to 24V DC, 10mA max.Digital Output (DO)2 digital output:?Open collector to 24VDC, 100mAEnclosureIP30 aluminum caseInstallationDIN-rail or wall mountingDimensions (W x D x H)76.8 x 107.3 x 152 mmWeight1,168gPower RequirementsDC 9~48V, 3.3A max.AC 24V, 1.2A max.Power ConsumptionDC input:Max. 9.12 watts/32BTU(system on)Max. 26.04 watts/89 BTU (Full loading)AC 24V input:Max. 12 watts/41BTU (system on)Max. 29 watts/99 BTU (Full loading)ESD Protection6KV DCSurge Protection4KV DCLED IndicatorsSystem:?Power 1 (Green), Power 2 (Green)?Fault Alarm (Red)?Ring (Green), Ring Owner (Green)?DIDO (Red)Per 10/100/1000T RJ45 Port:?1000Mbps LNK/ACT (Green)?10/100Mbps LNK/ACT (Amber)Per SFP Port:?1G/2.5G LNK/ACT (Green)?100Mbps LNK/ACT (Amber)Switching SpecificationsSwitch ArchitectureStore-and-ForwardSwitch Fabric52Gbps/non-blockingThroughput38.69Mpps@64BytesAddress Table32K entries, automatic source address learning and agingShared Data Buffer16MbJumbo Frame10K bytesLayer 3 FunctionsIP InterfacesMax. 128 VLAN interfacesRouting TableMax. 128 static routing entriesMax. 4000 dynamic routing entriesRouting ProtocolsIPv4 hardware static routingIPv6 hardware static routingOSPFv2 dynamic routing
