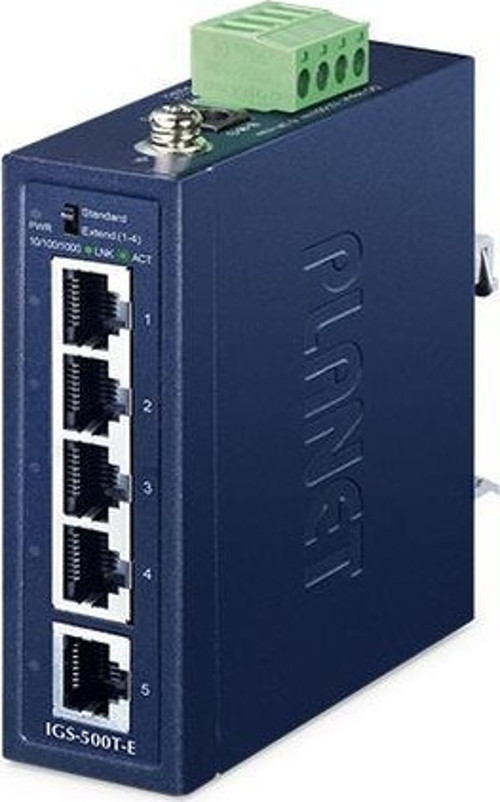

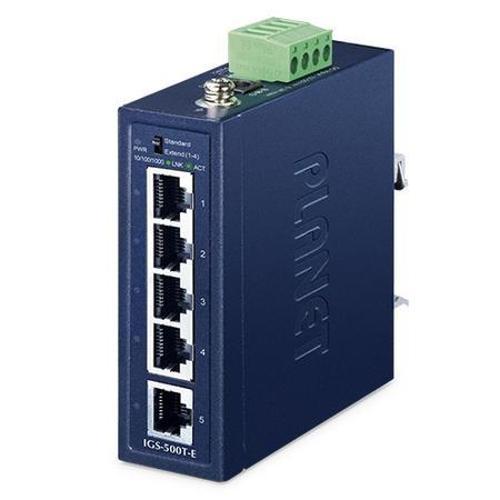

Planet PL-IGS-500T-E 5 Port Gigabit Compact Endüstriyel Switch

Planet PL-IGS-500T-E 5 Port Gigabit Compact Endüstriyel Switch Hardware SpecificationsCopper Ports5 x 10/100/1000BASE-T RJ45 TP auto-MDI/MDI-X, auto negotiationConnectorRemovable 4-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for Power 2DC Jack ConnectorDIP SwitchStandard Mode:In Standard Mode, all interfaces can communicate with each other, supporting a transmission distance of up to 100 meters with an adaptive transmission rate of 10/100/1000Mbps.Extend Mode:In Link Extension Mode, data transmission on ports 1 to 4 can reach up to 250 meters, with a reduced transmission speed of 10Mbps to ensure signal stability over long distances.LED1 x LED for system and power:?Green: DC Power 11 x LED for each copper port :?Green: 10/100/1000Mbps LNK/ACTPower Requirements12~55V DC redundant power with revise polarity protectionPower Consumption / DissipationMax. 0.55 watts/1.88 BTU (Power on without any connection)Max. 1.65 watts/5.63 BTU (Ethernet full loading)Dimensions (W x D x H)30.2 x 76.1 x 100 mmWeight266gEnclosureIP40 metal caseInstallationDIN-rail kit and wall-mount ear (Side wall mount is an optional accessory)ESD Protection6KVEFT Protection6KVNetwork Cables10/100/1000BASE-TCat. 3, 4, 5, 5e, 6 UTP cable (max. 100 meters)EIA/TIA-568 100-ohm STP (max. 100 meters)Switch SpecificationsSwitch Processing SchemeStore-and-ForwardSwitch Fabric10GbpsThroughput (packet per second)0.744Mpps@64bytesAddress Table2K entriesShared Data Buffer3M bitsFlow ControlBack pressure for half duplexIEEE 802.3x pause frame for full duplexStandards ConformanceStandards ComplianceIEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3x Full-Duplex Flow ControlIEEE 802.3az Energy Efficient EthernetRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)IEC 60068-2-27 (shock)IEC 60068-2-6 (vibration)EnvironmentTemperatureOperating: -40~75 degrees CStorage: -40~85 degrees CHumidityOperating: 10~90%Storage: 5~95% (non-condensing)
