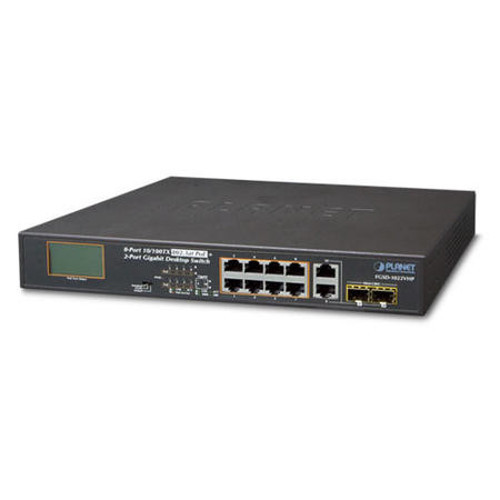

Planet PL-FGSD-1022VHP 8 Port 10/100TX PoE+ 2 Port Gigabit 2 Port SFP 120W PoE Switch

Yönetilemeyen Masaüstü Tip Switch (Unmanaged Desktop Switch)8-Port 10/100TX 802.3at/af PoE+ Injector Port (Per port 30.8 watt) (PoE Güç Bütçesi maks. 120 Watt)2-Port 10/100/1000BASE-T ve 1000BASE-X SFP/mini-GBIC yuva (paylaşımlı)LCD Ekranlı - PoE kullanımı ve sistem durumu bilgisi için  Physical Port8-port 10/100BASE-TX Fast Ethernet RJ45 copper2 10/100/1000BASE-T TP and 2 1000BASE-X mini-GBIC SFP shared combo interfacesPower over EthernetComplies with IEEE 802.3af/at Power over Ethernet end-span PSEUp to 8 ports of IEEE 802.3af/802.3at devices poweredSupports PoE Power up to 30.8 watts for each PoE portEach port supports 53V DC power to PoE Powered Device120-watt PoE budgetAuto detects powered device (PD)Circuit protection prevents power interference between portsRemote power feeding up to 100m with standard modeSwitchingHardware based 10/100Mbps or 10/100/1000Mbps auto-negotiation and auto MDI/MDI-XFlow control for full duplex operation and back pressure for half duplex operationIntegrates address look-up engine, supporting 4K absolute MAC addressesIEEE 802.1Q VLAN transparencyHardware DIP switch for “Standard”, “VLAN” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolationSolid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofingAutomatic address learning and address agingHardware12-inch desktop size, 1U height, rack mountableLED indicators for system power, per port PoE ready and PoE activity, speed, Link/ActLCD monitor for system status and PoE usage status display1 silent fan to provide stable and efficient power performanceSupports Contact Discharge of ±4KV DC and Air Discharge of ±6KV DC for Ethernet ESD protectionSupports ±4KV Surge Immunity Hardware Specifications802.3af/802.3at PoE Injector Port810/100BASE-TX MDI/MDIX Ports810/100/1000BASE-T MDI/MDIX Ports2 (Combo Port)1000BASE-X SFP/mini-GBIC Slots2 (Combo Port)DIP Switch1 for standard mode/VLAN mode/extend mode operationSwitch ArchitectureStore-and-ForwardSwitch Fabric5.6Gbps/non-blockingSwitch Throughput@64 bytes4.16Mpps@64BytesMAC Address Table4K entriesMaximum Frame Size1536 bytesFlow ControlIEEE 802.3x pause frame for full-duplex; back pressure for half-duplexLEDSystem:Power (Green)10/100BASE-TX RJ45 Interfaces:10/100Mbps LNK/ACT (Green)PoE-in-Use (Orange)10/100/1000BASE-T RJ45/SFP Interfaces:LNK/ACT (Green)100/1000 (Green)LCD Monitor? Total PoE budget? Total PoE usage? Per port PoE usage? PD light load protection/PD over load protectio
