Owon Sds5032e 30mhz 2 Kanal Osiloskop

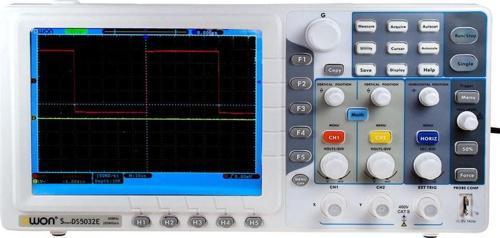

OWON SDS5032E 30Mhz 2 Kanal Osiloskop

Digital Storage Oscilloscope DSO 2 channels 30MHz with 8-inch TFT screen. Analyze in detail the signals and waveforms clearly, thanks to its TFT LCD color.Memory capacity to record the waveforms; up to 10K samples. It also has USB input for memory and communication port for screen capture sampling and data export to Excel.

• Bandwidth : 30MHz
• 2 Channel + 1 External Channel
• Maximum Sampling: 250MS/s
• Ultra thin bodyy
• 8 inch Display Color LCD, 800 x 480 pixels
• Input impedance: 1MOhm +/-2% in parallel with 10pF +/-5pF
• It can be adapted to probe attenuation factor 1X, 10X, 100X and 1000X
• Maximum input voltage: 400Vpp
• Internal storage capacity of 10K samples
• LAN port
• USB port

Model
SDS5032E
Bandwidth
30MHz
Sample Rate (real time)
500MS/s
Horizontal Scale (s/div)
5ns/div~100s/div, step by 1~2~5
Channel
2 + 1 (external)
Display
8" color LCD, 800 × 600 pixels
Record Length
10K
Vertical Resolution (A/D)
8 bits (2 Channels simultaneously)
Vertical Sensitivity
5mV/div~5V/div (at input)
Trigger Type
Edge, Pulse, Video, Slope, and Alternate
Trigger Mode
Auto, Normal, and Single
Waveform Math
+, -, ×, ÷, invert, FFT
Communication Interface
USB host, USB device, Pass / Fail, LAN, and VGA (optional)
Battery
not supported
Dimension (W×H×D)
348 × 170 × 78 (mm)
Weight (without package)
1.50 kg

Paket İçeriği:

• 1 Adet SDS50323E Osiloskop
• 2 Adet Osiloskop Prob
• 1 Adet Güç Kablosu
• 1 Adet Data Cd
• 1 Adet Usb Kablo
• 1 Adet Malzeme torbası
• 1 Adet İngilizce Manual
