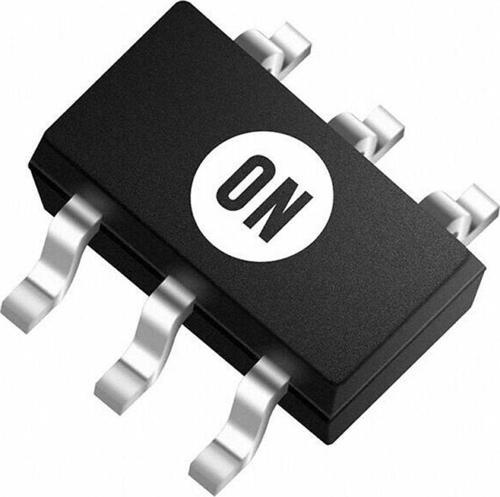

Microchip Technology NCS214RSQT2G Current Sense Amplifier 26V Low-/High-Side Voltage Out Bidirectional

NCS214RSQT2G Current Sense Amplifier

26V Low-/High-Side Voltage Out Bidirectional Current Shunt Monitor 1 Circuit Rail to Rail SC-88 SC70-6 SOT-363

The NCS214R and NCV214R (AEC- Q100 qualified) are voltage output, current sense amplifiers that can measure voltage across shunts at common-mode voltages from -0.3 V to 26 V, independent of supply voltage. With a fixed gain of 100V/V, the low offset of the zero-drift architecture enables current sensing across the shunt with maximum vooltage drops as low as 10 mV full-scale. These devices can operate from a single +2.2 V to +26 V power supply, drawing a maximum of 80 µA of supply current. Available in SC70-6 and UQFN10 packages.Additional gain options are available: NCS213R (50 V/V), NCS210R (200 V/V), NCS211R (500 V/V)

Features:

• Wide Common Mode Input Range: -0.3 to 26V
• Low Offset Voltage: ±100 µV max.
• Low Offset Drift: 0.5 µV/°C max.
• Supply Voltage: 2.2 to 26 V
• Amplifier Type: Current Sense
• Number of Circuits: 1
• Output Type: Rail-to-Rail
• Slew Rate: 1V/us
• -3db Bandwidth: 60 kHz
• Current - Input Bias: 39 µA
• Voltage - Input Offset: 1 µV
• Current - Supply: 40µA
• Voltage - Supply Span (Min): 2.2 V
• Voltage - Supply Span (Max): 26 V
• Operating Temperature: -40C / 125C (TA)
• Mounting Type: Surface Mount
• Package / Case 6-TSSOP, SC-88, SOT-363
• Supplier Device Package SC-88/SC70-6/SOT-363

Applications

• Power Monitoring
• Power Adapters
• LED Power Supply
• Over Current Protection
• Automotive
• Closed Loop Feedback Circuits

End Products

• White Goods
• Automotive
• Lighting
• Laptop/Notebooks PC
• Fast Chargers in Smartphones and Tablets
• Telecom DC-DC Modules
• E-Cigarettes
• Computing Servers

Paket İçeriği:

• 1 Adet NCS214RSQT2G Current Sense Amplifier
