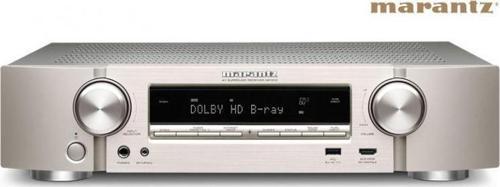

Marantz NR1510 Silver 5.2 Kanal 4K Slimline Av Receiver

Marantz NR1510 Silver Slim 5.2-Kanal Network A/V Amplifikatör



Key Features

• Up to 50W per Channel at 8 Ohms
• Audyssey MultEQ Sound Calibration
• 4K Ultra HD Support
• HDR10, HLG, Dolby Vision Pass-Through

Enjoy surround sound with voice control and internet streaming with the Marantz NR1510 5.2-Channel Network A/V Receiver. It delivers up to 50W of power per channel at 8 ohms and features built-in Bluetooth, AirPlay 2, and HEOS support, allowing you to wirelessly stream music from compatible sources, such as smartphones and tablets.



Enjoy surround sound with voice control and internet streaming with the Marantz NR1510 5.2-Channel Network A/V Receiver. It delivers up to 50W of power per channel at 8 ohms and features built-in Bluetooth, AirPlay 2, and HEOS support, allowing you to wirelessly stream music from compatible sources, such as smartphones and tablets. Onboard Wi-Fi and Ethernet connectivity allows the NR1510 to access a variety of internet-based music sources. The NR1510 can be voice-controlled via your Amazon Alexa, Google Assistant, or Siri ecosystem.

With six HDMI inputs, this receiver can act as a video switcher for your HD source components. It will pass through 4K signals along with HDR10, HLG, and Dolby Vision HDR formats to your compatible display. The receiver also has a USB port for accessing media stored on USB flash drives. Audyssey MultEQ sound calibration will fine-tune the receiver to your speakers and room setup for a tailored listening experience.



• Voice control via your Amazon Alexa, Google Assistant, and Siri devices
• Audyssey MultEQ sound calibration
• Slim 4.1" height
• 5-channel discrete amplification
• 6 HDMI inputs with HDCP 2.3 support
• Supports Dolby Vision, HLG, eARC, and ALLM for enhanced image and audio
• 4K / 60 Hz, 4:4:4 color resolution, and HDR10, BT.2020 pass-through
• ALAC, FLAC, and WAV support up to 24-bit / 192 kHz for high-resolution listening
• HEOS built-in for multi-room streaming and music streaming
• Audyssey Dynamic EQ & Dynamic Volume
• MDAX2 compressed audio enhancer
• Network audio streaming
• DSD audio streaming up to DSD5.6
• FLAC, WAV, ALAC, DSD gapless playback
• TuneIn internet radio, Spotify Connect, Deezer, TIDAL, Napster, Pandora, SiriusXM
• Marantz 2016 AVR Remote app for iOS & Android
• 3D pass-through
• Domotz Pro & IHIJI compatible
• 1-line FL display
• 3 GUI languages
• Setup assistant
• Smart Select
• Firmware updates via network & USB
• Variable crossover
• Optimized bass redirection
• ECO Mode
• Auto power off
• Sleep timer

Amplifier

Channels5.2

Power Output per Channel

2-Channel Driven:

50 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD

60 W at 6 Ohms / 1 kHz / 0.7% THD

1-Channel Driven:

100 W at 6 Ohms / 1 kHz / 10% THD

Frequency Response10 Hz to 100 kHz +1/-3 dB (Direct Mode)



Audio Processing

DTS CompatibilityDTS-HD Master Audio

Dolby CompatibilityDolby TrueHD

Auro 3D SupportNo

Supported File FormatsAAC, ALAC, FLAC, MP3, WAV, WMA



Video

HDR CompatibilityHDR10, Dolby Vision, Hybrid Log Gamma

Pass-Through Support4K60p 4:4:4 (BT.2020)



Connectivity

Rear A/V Inputs

5 x HDMI

3 x RCA Composite

4 x Stereo RCA (Phono) with Ground Screw

1 x Optical TOSLINK

1 x Digital Coaxial

Rear A/V Outputs1 x HDMI

1 x RCA Composite

1 x Stereo RCA Pre-Out

2 x RCA Subwoofer Pre-Out

1 x 1/4" / 6.35 mm Headphone

Front I/O1 x HDMI

1 x USB Type-A

Other Rear I/O2 x Bluetooth/Wi-Fi Antenna Terminal

1 x RJ45 (Ethernet) Input

1 x AM Antenna Terminal

1 x FM Antenna Terminal

1 x 1/8" / 3.5 mm (IR) Input

1 x RCA (Remote) Input

1 x RCA (Remote) Output

1 x 1/8" / 3.5 mm (Setup Mic) Input

Speaker Connectors5 x Binding Post Pairs

HDCP SupportVersion 2.2

Audio Return Channel (ARC)Yes, eARC

HDMI CECYes

Input SensitivityLine: 130 mV

Phono: 2.5 mV

Signal to Noise RatioLine: 98 dB (A-Weighted / Direct Mode)

Phono: 74 dB



Wireless Connectivity

Wi-FiWi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)

Wireless SecurityWEP 64, WEP 128, WPA-PSK, WPA2-PSK, AES, TKIP

Bluetooth4.1

Bluetooth ProfilesA2DP 1.2

AVRCP 1.5

Supported Audio CodecsSBC

Bluetooth Range98.4%27 / 30 m

Wireless Audio ProtocolsAirPlay 2



Tuner Section

Tuner TypeAM, FM

Radio FrequenciesAM: 520 to 1710 kHz

FM: 87.5 to 107.9 MHz

SensitivityAM Effective: 18 µV

FM Effective: 1.2 µV / 12.8 dBf

FM Mono at 50 dB: 2.8 µV / 20.2 dBf



Power

AC Input Power120 VAC, 60 Hz

Power ConsumptionActive: 180 W

Standby: 0.2 W

CEC Standby: 0.5 W



Physical

Dimensions (W x H x D)17.3 x 4.1 x 14.9" / 439.4 x 104.1 x 378.5 mm (Antenna Down)

17.3 x 6.9 x 14.9" / 439.4 x 175.3 x 378.5 mm (Antenna Up)

17.3 x 4.1 x 14.5" / 439.4 x 104.1 x 368.3 mm (Antenna Removed)

Weight18.1 lb / 8.2 kg
