Mackie HD1801 18" 1600W Aktif Subwoofer 133-dB

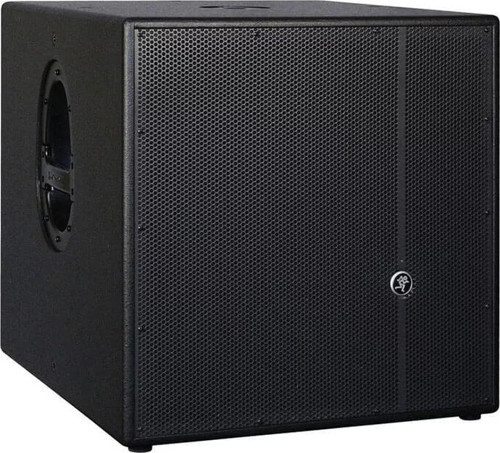

Mackie HD1801 18" Powered Subwoofer



The HD1801 from Mackie is a powered subwoofer that delivers powerful bass from a lightweight and compact design. An ideal companion to the HD-series 2-way loudspeakers, the sub has a ported bass-reflex birch cabinet to provide tight, punchy low frequency reinforcement. The cabinet houses a high-power 18" woofer that was designed by EAW to deliver bass frequencies as low as 35Hz.

The internal Class-D amplifier provides a peak power of 1600W for an incredibly strong performance with low distortion. The efficient amplifier design results in fast recovery and high SPL levels. Active electronics include a symmetrical Linkwitz-Riley crossover, precision tuning filters for accurate bass, plus phase alignment to work perfectly with full-range loudspeakers. The sub has dual XLR inputs, plus full-range and high-pass XLR outputs for mono or stereo applications.



• 1600W of ultra-efficient Class-D Fast Recovery™ amplification
  • » 800W RMS / 1600W peak power
  • » 133 dB SPL max output (peak @ 1m)
  • » 35 Hz to 145 Hz operating range
• 18” high-output woofer with 4” voice coil
• Active electronics provide complete system optimization
  • » Symmetrical Linkwitz-Riley crossover (100Hz, 24dB/octave)
  • » Precision tuning filters for ultra-accurate bass reproduction
  • » Phase alignment to perfectly complement Mackie full-range HD loudspeakers
• Ported, direct-radiating design for maximum punch and low-frequency extension
• Designed and tuned by Eastern Acoustic Works (EAW)
• Dual XLR inputs, full-range and high-pass outputs for mono or stereo setups
• Level control and polarity invert switch with LED indicator
• Signal/limit and thermal LED indicators
• Integrated protection and limiting circuitry
• Rugged all-wood cabinet (15mm birch plywood)
• Pole mount receptacle for mounting full range speaker
• 12 integrated M10 flypoints
• Optional Caster Kit
  (ACC-CK100)
• Compact and lightweight (106 lbs / 48.1 kg)



Active or Passive Active Frequency Response 35-145Hz (-10dB)
44-95Hz (-3dB) Amplifier 800W RMS, 1600W Peak, Class-D Maximum Sound Pressure Level (SPL) 129dB Measured
133dB Calculated Total Harmonic Distortion (THD) < 0.03% Input Impedance 20 kOhms Crossover 100Hz, 24dB/Oct Symmetrical Linkwitz-Riley Low Frequency Driver 15" (381mm) Paper Diaphragm Woofer with Ferrite Magnet and 3" Voice Coil Enclosure Material 15mm Birch Plywood with Black Paint Finish, Powder-Coated Steel Grille, and 2 Integrated Handles Connectors 2 x XLR Inputs
1 x Full-Range XLR Output
1 x High-Pass XLR Output
1 x Power Input Mounting 1 x Standard Pole Socket
12 x M10 Fly Points Power 100-240VAC, 50/60Hz Dimensions (HxWxD) 23 x 23 x 25.8" (584 x 584 x 655mm) Weight 106 lbs (48.2kg)
