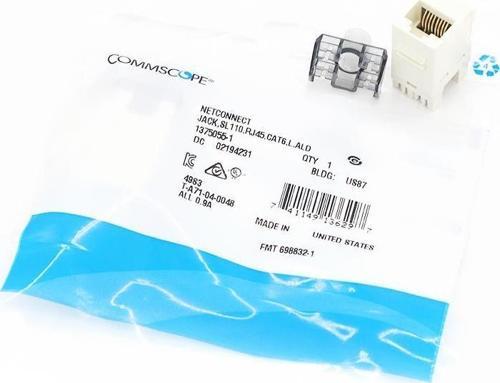

Commscope KEYSTONE JACK UTP CAT6 180 D IVORY 1375055-1 (10'LU PAKET )
Peşin Fiyatına 6 Taksit 6 x 495,68 TL
Alışveriş Kredisinden Faydalanmak İster misiniz?
Kargo Bilgileri
Ürün Özellikleri
Renk
Krem
COMMSCOPE CAT6 KREM KEYSTONE JACK (1375055-1) (10'LU PAKET)
RENK: KREM
MARKA : COMMSCOPE
PAKET İÇERİĞİ : 10 ADET
1375055-1 | SL110-6-L.AL
©2024 CommScope, Inc. All rights reserved. CommScope and the CommScope logo are registered trademarks of CommScope and/or its
affiliates in the U.S. and other countries. For additional trademark information see https://www.commscope.com/trademarks. All product names,
trademarks and registered trademarks are property of their respective owners. Revised: June 25, 2024
Page 1 of 3
SL-Series Modular Jack, RJ45, Cat6 Unshielded, Light Almond
Product Classification
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America
Portfolio NETCONNECT®
Product Type Modular jack
Product Series SL Series
General Specifications
ANSI/TIA Category 6
Cable Type Unshielded
Color Light almond
Conductor Type Solid | Stranded
Integrated Dust Cover Type None
Mounting SL Series facePilates and panels
Mounting Note Color matches with SL-style Almond FacePilates and Surface
Mount Boxes
Outlet Feature Inverted jack face
Outlet Type Standard
Termination Punchdowns, minimum 200 times
Termination Tool SL Termination tool
Termination Type IDC
Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class E
Wiring T568A | T568B
Dimensions
Panel Cutout, recommended 14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended 1.6 mm | 0.063 in
Height 16.13 mm | 0.635 in
1375055-1 | SL110-6-L.AL
©2024 CommScope, Inc. All rights reserved. CommScope and the CommScope logo are registered trademarks of CommScope and/or its
affiliates in the U.S. and other countries. For additional trademark information see https://www.commscope.com/trademarks. All product names,
trademarks and registered trademarks are property of their respective owners. Revised: June 25, 2024
Page 2 of 3
Width 14.48 mm | 0.57 in
Depth 30.48 mm | 1.2 in
Compatible Cable Diameter, maximum 5.8 mm | 0.228 in
Compatible Insulated Conductor Diameter, maximum 1.45 mm | 0.057 in
Contact Plating Thickness 1.27 µm
Compatible Conductor Gauge, solid 24–22 AWG
Compatible Conductor Gauge, stranded 26–24 AWG
Electrical Specifications
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm
Current Rating at Temperature 1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface 1,500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact 1,000 Vac @ 60 Hz
Insulation Resistance, minimum 500 mOhm
Remote Powering Fully supports the safe delivery of power over LAN cabling
described by IEEE 802.3bt (Type 4) and complies with the
unmating under electrical load requirements prescribed by IEC
60512-99-002
PoE Durability Supports IEEE 802.3bt Type 4 (90 W) applications after 3000
plug to jack mating cycles
Safety Voltage Rating 150 Vac
Material Specifications
Contact Base Material Beryllium copper
Contact Plating Material Gold
Material Type Polycarbonate
Termination Contact Plating Tin
Mechanical Specifications
Plug Retention Force, minimum 50 N | 11.24 lbf
Plug to Jack Mating Cycles Complies to IEC 60603-7 series
Environmental Specifications
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
UL 94 V-0
1375055-1 | SL110-6-L.AL
©2024 CommScope, Inc. All rights reserved. CommScope and the CommScope logo are registered trademarks of CommScope and/or its
affiliates in the U.S. and other countries. For additional trademark information see https://www.commscope.com/trademarks. All product names,
trademarks and registered trademarks are property of their respective owners. Revised: June 25, 2024
Page 3 of 3
Flammability Rating UL 94 V-0
Safety Standard UL | cUL
Packaging and Weights
Included Strain relief cap
Packaging quantity 1
Packaging Type Bag
Regulatory Compliance/Certifications
Agency Classification
CHINA-ROHS Below maximum concentration value
RCM Compliant to electrical safety & telecommunications requirements
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
