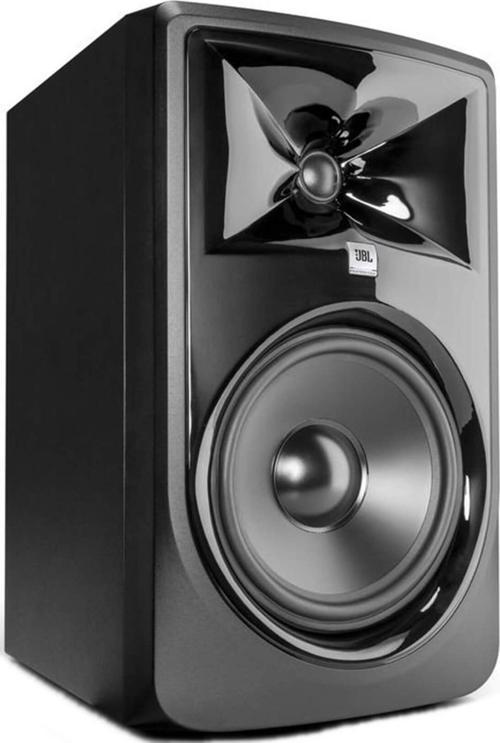

JBL 308P MKII 8 inç 112 Watt Aktif Studyo Monitör

Jbl 308P MKII 8'  112 Watt Aktif Studyo Monitör



Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot

Next-generation JBL transducers for optimized transient response and improved linearity

Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels

Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range

New Boundary EQ settings compensate for low frequency variants introduced by the environment

HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

Flexible connectivity with balanced XLR and 1/4' TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control

Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space

Strenuous JBL 100-hour full-power test ensures years of reliability

Sleek, modern design provides a visual upgrade to any studio

LF DRIVER SIZE203mm (8')

HF DRIVER SIZE25mm (1')

HF DRIVER TYPESoft dome

CROSSOVER1800Hz 4th order acoustic Linkwitz-Riley

OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENTYes

INPUT SENSITIVITY (-10dBV INPUT)92dB / 1m

POWER CONFIGURATIONBi-amplified

HF DRIVER POWER AMP56W, Class-D

LF DRIVER POWER AMP56W, Class-D

FREQUENCY RESPONSE (±3dB)45Hz – 20kHz

FREQUENCY RANGE (-10dB)37Hz – 24kHz

LOW FREQUENCY EXTENSION (-10dB)37Hz

MAXIMUM CONTINUOUS SPL102dB

MAXIMUM PEAK SPL112dB

MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu)+6dBV / +20.3dBu

SYSTEM DISTORTION CRITERIA<10% THD at maximum output with full compressor / limiter engagement

ELECTRICAL DISTORTION CRITERIA0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output

SIGNAL TO NOISE RATIO75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output

COVERAGE HORIZONTAL x VERTICAL120° x 90°

ANALOG INPUT TYPES1 x XLR female, 1 x TRS female, balanced

HF TRIM CONTROL-2dB, 0dB, +2dB

BOUNDARY EQLF Shelf @ 50Hz: -3dB, -1.5dB, 0dB

AC INPUT VOLTAGE100 – 240VAC (±10%), 50 / 60Hz

ENCLOSURE TYPEPorted

ENCLOSURE CONSTRUCTION15mm MDF

ENCLOSURE FINISHMatte black PVC

BAFFLE CONSTRUCTIONInjection-molded structural ABS

CABINET DIMENSIONS (H x W x D)419 x 254 x 308mm (16.5' x 10' x 12.1')

DISPLAY CARTON (H x W x D)473 x 312 x 358mm (18.6' x 12.3' x 14')

SHIPPING CARTON (H x W x D)491 x 326 x 372mm (19.3' x 12.8' x 14.6')

NET WEIGHT8.1 kg (17.87 lbs)

SHIPPING GROSS WEIGHT9.4 kg (20.73 lbs)
