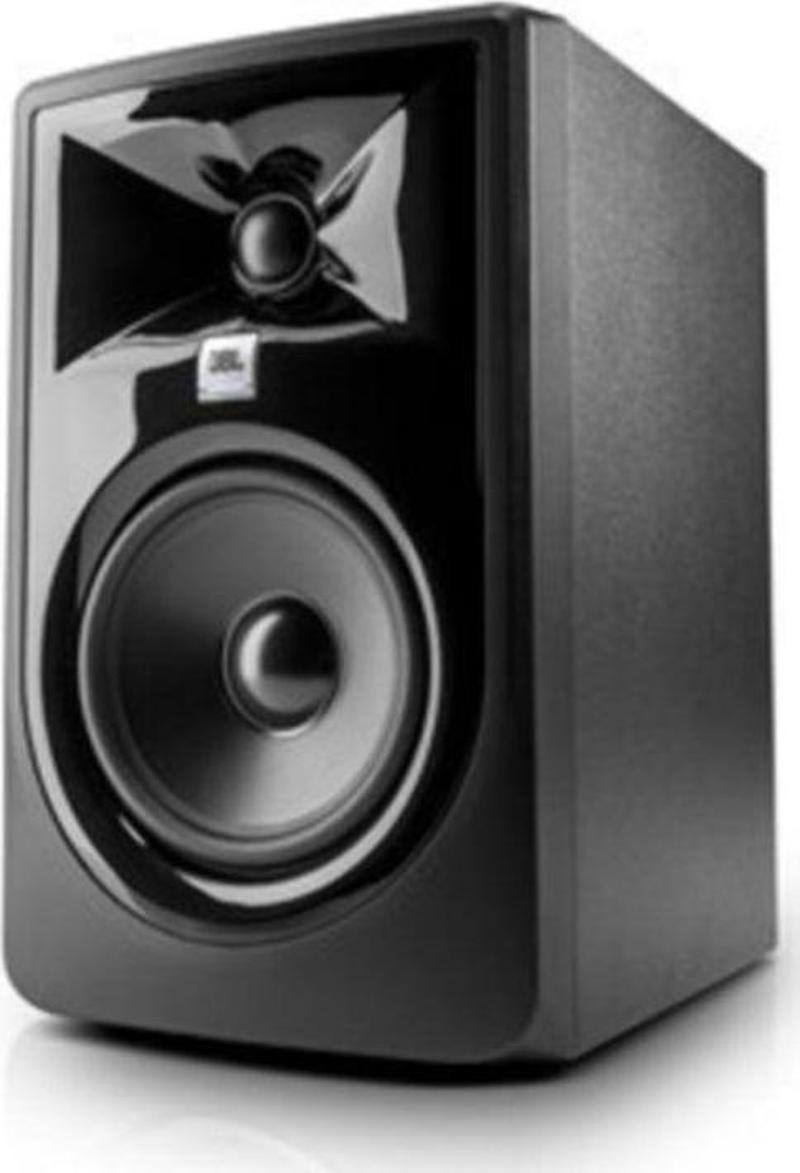

JBL 305P Mkıı 5 Inç 82 Watt Aktif Referans Monitörü

Jbl 305P MKII 5 inç 82 Watt Aktif Referans Monitörü

Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot.

Next-generation JBL transducers for optimized transient response and improved linearity.

Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels.

Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range.

New Boundary EQ settings compensate for low frequency variants introduced by the environment.

HF Trim switch adjusts high-frequency output to room acoustics or personal preferences.

Flexible connectivity with balanced XLR and 1/4' TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control.

Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space.

Strenuous JBL 100-hour full-power test ensures years of reliability.

Sleek, modern design provides a visual upgrade to any studio.

• LF DRIVER SIZE 203mm (5')
• HF DRIVER SIZE 25mm (1')
• HF DRIVER TYPE Soft dome
• CROSSOVER 1725Hz 4th order acoustic Linkwitz-Riley
• OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT Yes
• INPUT SENSITIVITY (-10dBV INPUT) 92dB / 1m
• POWER CONFIGURATION Bi-amplified
• HF DRIVER POWER AMP 41W, Class-D
• LF DRIVER POWER AMP 41W, Class-D
• FREQUENCY RESPONSE (±3dB) 49Hz – 20kHz
• FREQUENCY RANGE (-10dB) 43Hz – 24kHz
• LOW FREQUENCY EXTENSION (-10dB) 43Hz
• MAXIMUM CONTINUOUS SPL 94dB
• MAXIMUM PEAK SPL 108dB
• MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu) +6dBV / +20.3dBu
• SYSTEM DISTORTION CRITERIA
