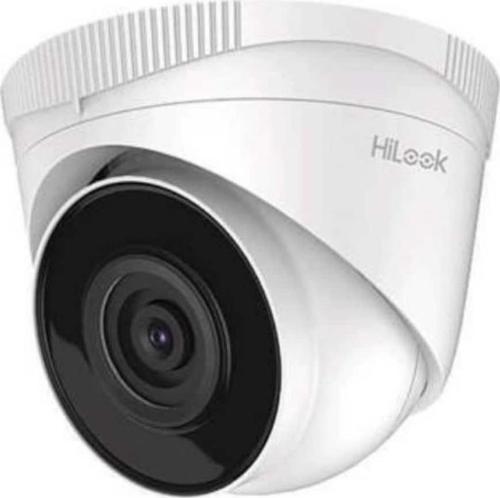

Hilook İpc-T240H 4Mp 2.8Mm Sabit Lens 30Mt İr Ip Dome Kamera

Hilook Ipc-T240H 4Mp 2.8Mm Sabit Lens 30Mt İr Ip Dome Kamera

1000067456009 Hilook IPC-T240H 4mp 2.8mm Lens 30mt Ir Ip Dome Kamera

Image Sensor1/3¨ progressive scan CMOS

Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed1/3 s to 1/100, 000 s

Slow ShutterYes

Wide Dynamic Range120 dB

Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°

DNR3D DNR

Day & NightIR cut filter

Auto-IrisNo

Lens

ApertureF2.0

FocusNo

FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°,4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°,6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°,

Lens MountM12

Focal Length2.8 mm, 4 mm, 6 mm

IR

IR RangeUp to 30 m

Wavelength850 nm


Image EnhancementBLC, 3D DNR

Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night SwitchAuto, scheduled

Max. Resolution2560 × 1440

Main Stream50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Network

Alarm TriggerMotion detection, video tampering alarm, illegal login

Network StorageNAS (NFS, SMB/CIFS)

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

APIONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live ViewUp to 6 channels

User/HostUp to 32 users 3 levels: Administrator, Operator and User

ClientiVMS-4200, Hik-Connect, iVMS-5200

Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version5.5.3

Interface

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

General

Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3),

Power Consumption And Current12 VDC, 0.4 A, max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W,

MaterialMetal & Plastic

DimensionsCamera: Ø 110 mm × 93.2 mm (Ø 4.3¨ × 3.7¨),With package: 150 mm × 150 mm × 141 mm (5.9¨ × 5.9¨ × 5.6¨),

WeightCamera: approx. 350 g (0.8 lb.),With package: approx. 610 g (1.3 lb.),

Protection LevelIP67,TVS 2000V lightning protection, surge protection and voltage transient protection

Operating Condition-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Compression Standard

• H.264+Main stream supports

• H.265+Main stream supports

H.264 TypeBaseline Profile/Main Profile/High Profile

Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,

H.265 TypeMain Profile

Video Bit Rate32 Kbps to 8 Mbps
