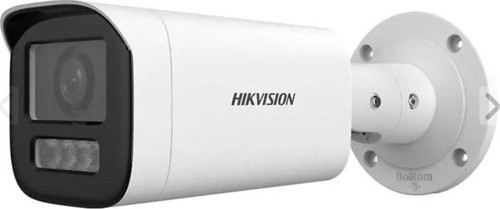

Hikvision DS-2CD1643G2-LIZSU-SL 4 mp 2.7-13.5m Lens Motorize Ir Ip Bullet Kamera

Hikvision DS-2CD1643G2-LIZSU-SL 4 mp 2.8-12m Lens Motorize Ir Ip Bullet Kamera



Temel Özellikler

 1/3" progressive scan CMOS  BLC/3D DNR/ROI
 2560 × 1440@20fps  Up to 60 m IR range
 2.7 mm to 13.5 mm varifocal lens  IP67,IK10
 H.265+, H.265, H.264+, H.264  120 dB WDR
 Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux
@ (F1.6, AGC ON)
 Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB
DS-2CD1643G0-IZS/UK
4 MP EXIR VF Bullet Network Camera



Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
Lens
Focal Length 2.7 to 13.5 mm
Aperture F1.6
Focus Auto
FOV
Horizontal field of view: 98° to 28°
Vertical field of view: 51° to 16°
Diagonal field of view: 115° to 32°
Lens Mount Φ14
IR
IR Range Up to 60 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub-stream/Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Behavior Analysis Line crossing detection, intrusion detection,
Face Detection Yes
Max. Resolution 2560 × 1440
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third steam
Max. Frame Rate
50Hz: 1080P@1fps
60Hz: 1080P@1fps
Image Enhancement BLC, 3D DNR,HLC
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
