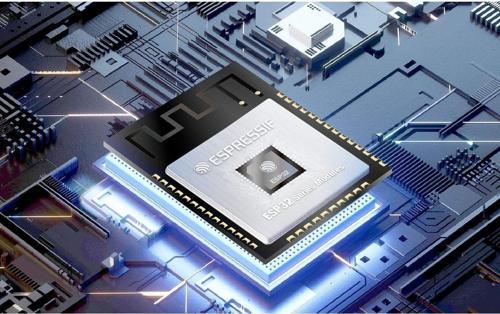

Espressif Esp32-wroom-32e Wifi Ve Bluetooth Modül Pcb Anten 4mb Flash 32bit

ESP32-WROOM-32E Wifi ve Bluetooth Modülü

PCB Anten 4Mb Flash ESP32-D0WD-V3 Dual Cpu

ESP32-WROOM-32E and ESP32-WROOM-32UE are two powerful, generic Wi-Fi+BT+BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.

ESP32-WROOM-32E comes with a PCB antenna, and ESP32-WROOM-32UE with an IPEX antenna. They both feature a 4 MB external SPI flash. The information in this datasheet is applicable to both modules.

At the core of the module is the ESP32-D0WD-V3 chip*. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power co-processor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I²S and I²C.

MCU

• ESP32-D0WD-V3 embedded, Xtensa® dual-core

32-bit LX6 microprocessor, up to 240 MHz

• 448 KB ROM for booting and core functions

• 520 KB SRAM for data and instructions

• 16 KB SRAM in RTC

WiFi

•

• Bit rate: up to 150 Mbps

• A-MPDU and A-MSDU aggregation

• µs guard interval support

• Center frequency range of operating channel:

2412 ~ 2484 MHz

Bluetooth®

• Bluetooth BR/EDR and Bluetooth LE

specification

• Class-1, class-2 and class-3 transmitter

• AFH

• CVSD and SBC

Hardware

• Interfaces: SD card, UART, SPI, SDIO, I2C, LED

PWM, Motor PWM, I2S, IR, pulse counter, GPIO,

capacitive touch sensor, ADC, DAC, Two-Wire

Automotive Interface (TWAI®, compatible with

ISO11898-1)

• 40 MHz crystal oscillator

• 4 MB SPI flash

• Operating voltage/Power supply: ~ V

• Operating temperature range: –40 ~ 85 °C

• Dimensions: x 18mm

Certification

• Bluetooth certification: BQB

• RF certification: FCC/CE-RED/SRRC

• Green certification: REACH/RoHS

Paket İçeriği :

• 1 Adet ESP32 ESP-WROOM-32E
