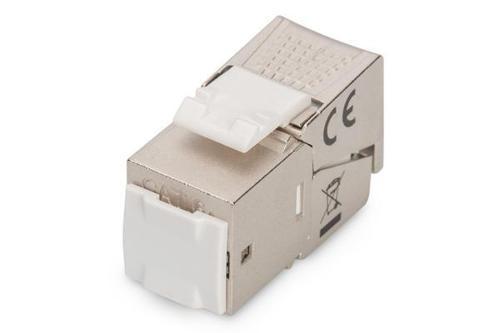

Assmann Digitus DN-93620 CAT6A Zırhlı Keystone Jack

Digitus DN-93620 CAT6A Zırhlı Keystone Jack Category 6A 10GBase-T, 500 MHzISO/IEC 11801 3rd Edition, EN 50173-1Geeignet für PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)Suitable for modular patch panel and modular wall outlet installation.RJ45-Jack, 8P8CCable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & BCable grip and cable fixation using cable tieTool-free mounting connection360° shield contactCase material: Zinc die-cast – nickel-platedContact coating: Nickel, gold-plated 0.5 µInsertion force: Max. 30N (as per IEC 60603-7-51)Holding force: 7.7 kg between jack and plugOperating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wireTested with AWG 22/1 solid installation cableDielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & BIntelligent cable manager (resealable)
